400mm Boring Diameter SRB Skiving And Roller Machine CK45 Material 0.03mm Roundness

I'm Online Chat Now

400mm Boring Diameter SRB Skiving And Roller Machine CK45 Material 0.03mm Roundness

400mm Boring Diameter SRB Skiving And Roller Machine CK45 Material 0.03mm Roundness
400mm Boring Diameter SRB Skiving And Roller Machine CK45 Material 0.03mm Roundness 400mm Boring Diameter SRB Skiving And Roller Machine CK45 Material 0.03mm Roundness

Large Image :  400mm Boring Diameter SRB Skiving And Roller Machine CK45 Material 0.03mm Roundness

Product Details:
Place of Origin: China
Brand Name: EOOE Hydraulic
Certification: ISO9001
Model Number: SRBE10000/400SNC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plastic Wrap+Vacuum Packing+Iron Frame
Delivery Time: 4 Month
Payment Terms: L/C, T/T
Supply Ability: 100 Sets/Year

400mm Boring Diameter SRB Skiving And Roller Machine CK45 Material 0.03mm Roundness

Description
Raw Material: CK45 Material Roundness: 0.03mm
Spindle Speed: Continuously Variable The Control System: SIEMENS 828D System
Ball Screw Brand: HIWIN Brand Taiwan Blockage Detection Device: Available
W/H Fixture: Manual Replacement Of Cone Disk SRB Machine Cooling Device Filter: Pipeline Filter 100 μm
Highlight:

SRB Skiving And Roller Machine

,

CK45 Skiving And Roller Machine

400mm Boring Diameter SRB Machine



Ⅰ.  Chip Removal System



There is a reliable chip removal system with a chip-breaking function, and the filtering system adopts an external method. The cutting fluid storage adopts a built-in reliable chip removal system and filtering system, with a filtering accuracy of 10-15μ, the filter screen in the filtration system is made of stainless steel material. A chip removal method that combines a chain plate chip remover with a magnetic separator.





Ⅱ. Parameters



SRB Type

SRBE10000/400SNC

Basic Appearance Color

White

SRB Machine Pressure Head Sealing

NOK Brand

SRB Machine Cooling Device Liquid Level Control

Alarm when Cutting Oil is Low

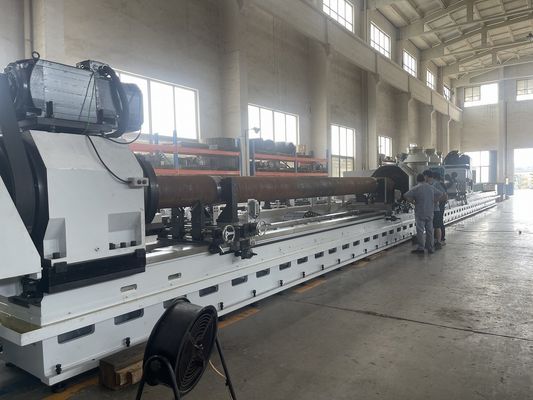

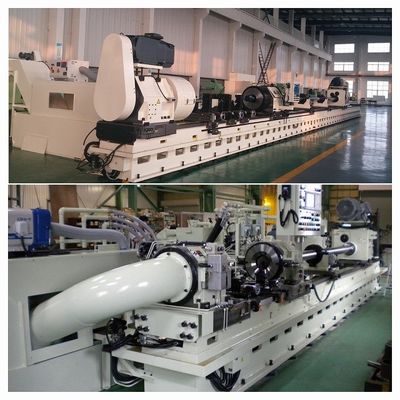

Ⅲ. Picture



400mm Boring Diameter SRB Skiving And Roller Machine CK45 Material 0.03mm Roundness 0
