Product Details:
|
| Skiving Allowance: | In Total 2mm | S/P Drive Mode: | Ball Screw+Servo Motor |
|---|---|---|---|
| Blockage Detection Device: | Available In The Contract | Cooling Device Liquid Level Control: | Alarm When Cutting Oil Is Low |
| Roughness After Machining: | Ra 0.04 | One Tube Machining Time: | 20 Min |
| Machine Protection: | Can Meet GB4053.3-1993 Standard | Workpiece Materials: | Hot-rolled Tubes,cold Drawn Tubes |
| Highlight: | SRB Machine HT300,Ra 0.04 SRB Machine |
||
HT300 Integral Casting Lathe Bed SRB Machine
Ⅰ. Detail of Lathe Bed
SRB Machine lathe bed adopts an integral cast bed body, made of HT300 material, to ensure the rigidity of the bed height and good shock absorption. After stress relief treatment, it ensures the long-term accuracy and stability of the equipment. Ultra wide guide rail design, SRBF300/50NC guide rail width 150mm, guide rail spacing 800mm, guide rail has undergone high-frequency quenching treatment, HRC50 or above, durable. The advanced design concept adopted by the bed can meet the requirements of various complex working conditions.
Ⅱ. Parameters
| SRB Model |
SRBF300/50NC |
|
ID of Raw Workpiece |
50mm |
| Length of the Tube |
300mm |
| SRB Machine Machining Method | Workpiece Fixation and Tooling Rotation |

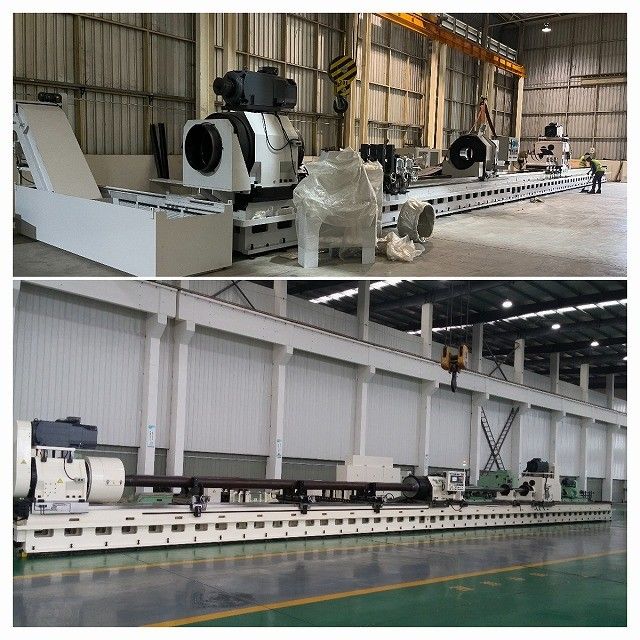

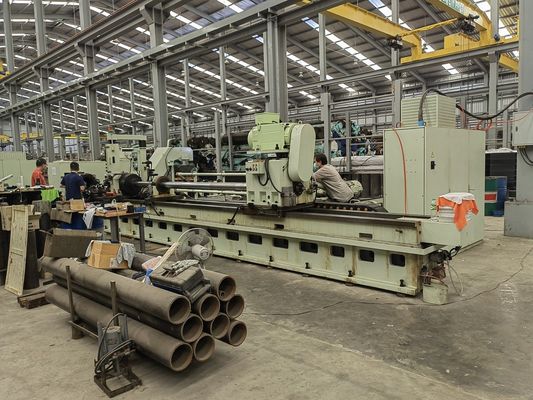

Ⅲ. Picture
