Product Details:
|
| Condition: | Brand-new | Cylinder Barrel Material: | 20#/45# |
|---|---|---|---|
| Lifting Speed: | 40mm/s | Purchase Year: | 2015 |
| Warranty: | 12 Month | Application: | Elevating Work Platform |
| Maximum Platform Height: | 26M | Painting Color: | As Per Customer's Requirements |
| High Light: | compact multi stage hydraulic cylinder,multi stage hydraulic cylinder telescopic,telescopic single and double acting cylinders |
||

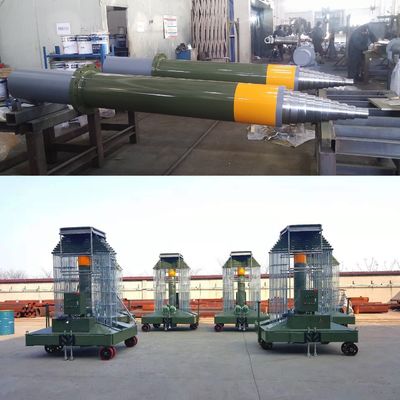

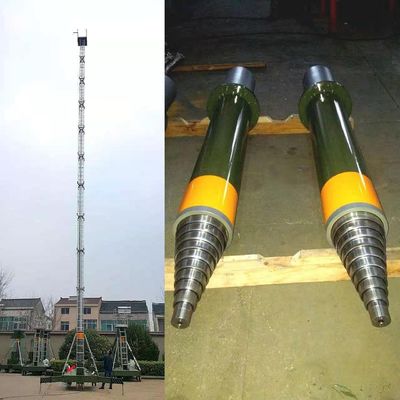

Stroke 22950mm Telescopic Cylinder with 10 Multi-stages
Ⅰ. Introduction
Telescopic cylinders are specially designed to provide extended stroke lengths without sacrificing compactness. These cylinders consist of a series of nested cylindrical stages that retract into one another, offering an elongated piston stroke within a compact housing. By employing this nested design, the telescopic cylinder achieves impressive stroke lengths while maintaining a compact form factor.
Ⅱ. Parameters
| Alternative Name |
Multi-stage hydraulic cylinder |
|
Structure Type |
Compact |
| Types |
Single-acting and double-acting |
| Applications |
High lift fork trucks |
Ⅲ. Advantages of Telescopic Design
1. Increased Stroke Length
The telescopic design allows for a significantly larger stroke length compared to traditional hydraulic cylinders. This expanded range is particularly beneficial in applications requiring extended reach or precise positioning.
2. Space Optimization
By using nested stages, telescopic cylinders can achieve a longer stroke within a relatively small installation space, making them ideal for constrained environments.
3. Enhanced Stability
Telescopic cylinders offer improved stability due to their nested structure, reducing the risk of undesired side loads or bending moments during operation.
