Product Details:
|
| Drawing Force: | 100T | Hydraulic Pump Brand Raw Material: | Rexroth |
|---|---|---|---|
| Installed Power Of Hydraulic System: | 215KW | Max. Drawing Speed: | 10m/min |
| Warranty: | 1 Year | Treatment Of Piston Rod: | Hard Chromium Plating |
| Motor Brand: | SIEMENS Or ABB | Advantage: | Rich Customer Cases Support |
| Highlight: | hydraulic cold drawn machine,cold drawn machine 2.5 m/min,215kw cold drawn machine |
||
10-100T Three-Line Hydraulic Cold Drawing Machine
Ⅰ. Brief Introduction
Three-line hydraulic cold drawing machine consists of a main base, a drawing trolley, a hydraulic system, and a corresponding electrical control system. Install a drawing die on the mold base, and install a hydraulic cylinder on the cylinder base. The hydraulic cylinder drives the drawing trolley to run on the bed guide rail. There is a three-slot tube installation device tilted above the main engine seat, and a core rod bracket corresponding to the three-slot tube installation device is installed in front of the main engine seat. Three pulling clamps are installed in front of the pulling trolley.
Ⅱ. Customer Case
| Main Parameters of YLB-B-100-8/10x3 | |
| Raw Material |
Carbon Steel |
| Raw Material OD |
Φ12.7~Φ76.3 |
|
Raw Material WT |
0.8~6 |
|
Raw Material Locating Pad Type |
Off-line head making |
|
Min. Drawing Speed |
2.5 m/min |
| Main Cylinder |
280/140-8500 |
| Clamp Device Type |
Two-petal tooth-shaped flat jaws |
| Hydraulic Oil Tank Capacity | 2500 |
Ⅲ. Characteristic
Three-line hydraulic cold drawing machine can simultaneously draw three pipes at one time, which is three times the production efficiency of the current single-line drawing machine. It can save energy and reduce consumption. It also has advantages including stable product quality, smooth equipment operation, and safe production.

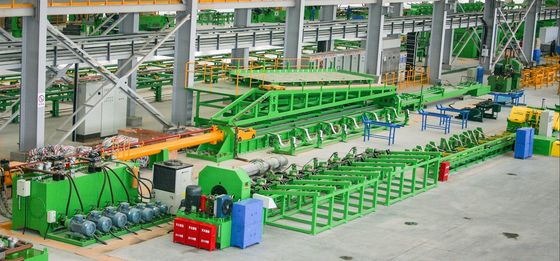

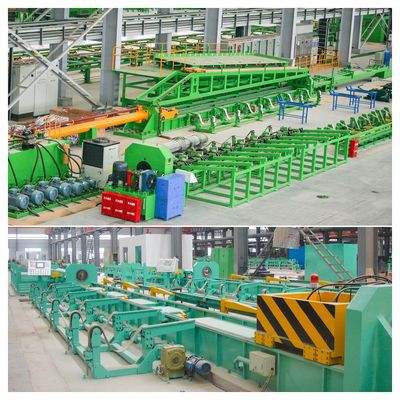

Ⅳ. Picture
