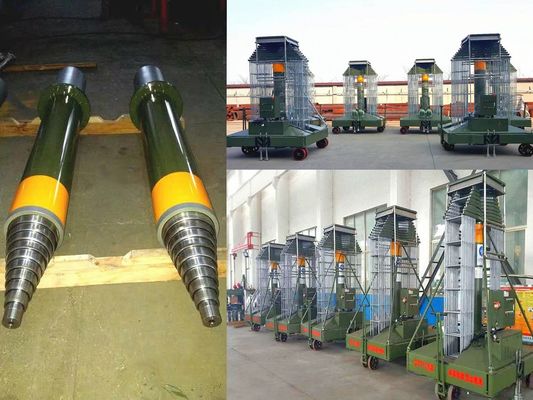

Max ID 500mm Customized Hydraulic Cylinder Three Stage Crane Hydraulic Cylinder

Large Image : Max ID 500mm Customized Hydraulic Cylinder Three Stage Crane Hydraulic Cylinder

Product Details:

Place of Origin:	China
Brand Name:	EOOE Hydraulic
Certification:	ISO9001
Model Number:	500/330/200/440/280/140-4900

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiable
Packaging Details:	Plastic Wrap+ Iron Frame
Delivery Time:	2.5 month
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS/Year

Contact Now

Max ID 500mm Customized Hydraulic Cylinder Three Stage Crane Hydraulic Cylinder

Description

Another Name:	Multi-stage Hydraulic Cylinder	Cylinder Tube Material:	20#
Design:	Nested	Purchase Year:	2023
Warranty Time:	One Year	Application Industry:	High Lift Fork Trucks And Dump Trucks
Construction:	Is Composed Of Two Or More Cylinder Bodies	Painting Color:	Customization
Highlight:	500mm customized hydraulic cylinder , three stage crane hydraulic cylinder , customized hydraulic cylinder three stage

Max ID 500mm Three-stage Cylinders Used in Hydraulic Cranes

Ⅰ. Brief Introduction

A multi-stage hydraulic cylinder is composed of two or more cylinder bodies, each of which is equipped with a piston. It is a hydraulic transmission device that can achieve greater force within a smaller stroke. It achieves force amplification through the combination of multiple cylinder blocks and has high adjustability.

Ⅱ. Parameters

Specification	500/330/200/440/280/140-4900
Type	Double-acting
Advantage	Stroke can be Adjusted According to Actual Needs
Application	the Lifting Device of Heavy Machinery

Tag:

Contact Person: Ms. Patricia

Tel: +86 19802501087
