Product Details:
|
| Product Name: | Withdrawal Straightening Cylinder | Min QTY: | 1 PC |
|---|---|---|---|
| Brand Of Seals: | Parker | Warranty: | 12 Month |
| Presuure Testing Before Delivery: | Available Int The Contract | The Elongation Of The Cylinders: | 2% |
| Environment Temperature: | -20℃ - + 150℃ | Function: | Manage The Pressure And Moves It To The Desired Position. |
Ⅰ. Introduction
The tension leveling apparatus consists of two components: a work roll with a small diameter and two support rolls with large diameters. The support roll is rotatably mounted to a support frame and has its axis fixed in a certain position. The work roll is movable relative to the support roll's axial axis. The two work roll units are nearly identical in construction and operation.
A tension leveling apparatus consists of lower and upper work roll units. The lower work roll unit comprises two bearing support plates for a cylindrical work roll and two backup rolls. The support rolls are rotatably mounted to the support frame. They are separated by spacer plates. The upper work roll unit 16 has a substantially similar construction to the work roll unit 14. It is used for leveling material at a wide variety of applications.
Ⅱ. Parameters
| Specification Detail | D320/200-160 |
|
Application |
Metallurgical Industry |
| Minimum Order |
1 set |
|
Application |
Durable and can be used in heavy-duty situations |

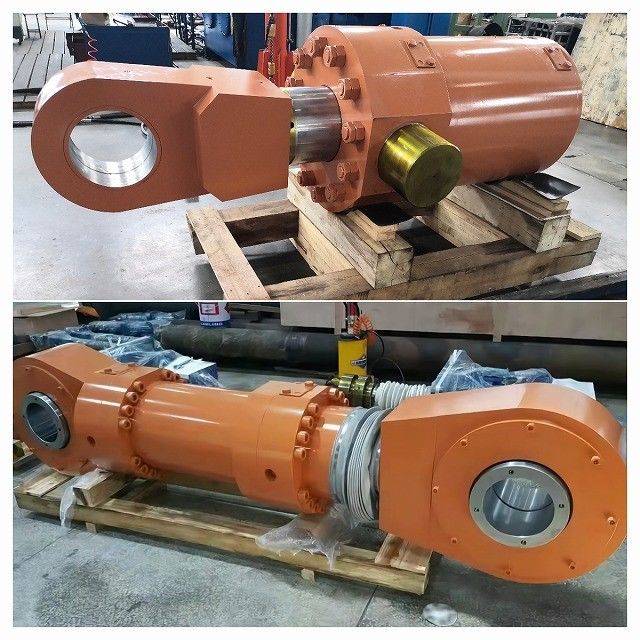

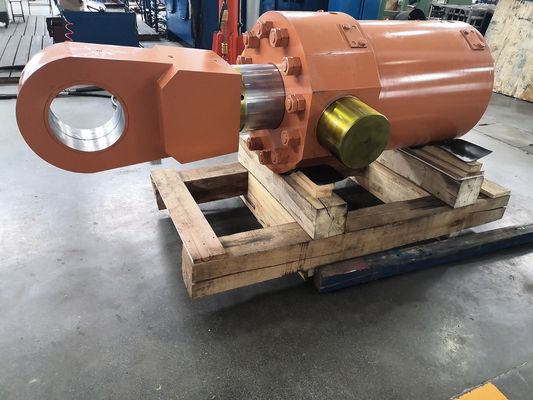

III. Picture
