Ergonomic Design Cold Draw Bench Carbon Steel Hydraulic Cold Drawing Process

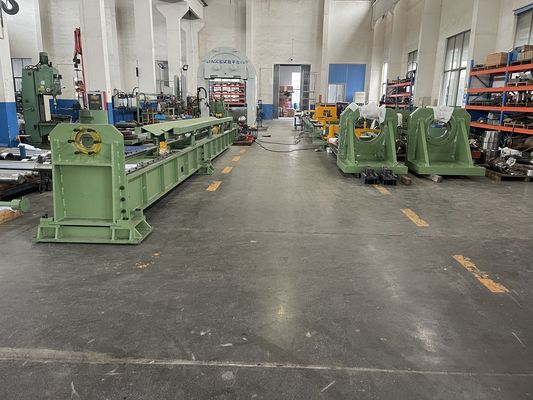

Large Image : Ergonomic Design Cold Draw Bench Carbon Steel Hydraulic Cold Drawing Process

Product Details:

Place of Origin:	China
Brand Name:	EOOE Hydraulic
Certification:	ISO9001
Model Number:	100T

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Plastic Wrap+vacuum packing+iron frame
Delivery Time:	4-5Month
Payment Terms:	L/C, T/T
Supply Ability:	100 Sets/Year

Contact Now

Ergonomic Design Cold Draw Bench Carbon Steel Hydraulic Cold Drawing Process

Description

Machining Raw Material:	Carbon Steel	Installation And Commissioning:	Available
Raw Material Outer Diameter:	Φ12.7~Φ76.3	Travel Switch:	Moujen Brand
Raw Material Wall Thickness Range:	0.8~6	Raw Material Length Range:	≤7
Raw Material Locating Pad Type:	Off-line Head Making	Finished Tube Material Outer Diameter:	Φ12.7~Φ76.3
Highlight:	Ergonomic Cold Draw Bench , Carbon Steel Cold Draw Bench , Ergonomic Cold Drawing Process

Hydraulic Cold Drawnbench With Ergonomic Design

Ⅰ. Function

The Three-line Hydraulic Cold Drawing Machine excels in material recalibration. It seamlessly transforms raw materials into desired dimensions, shapes, and tolerances. By subjecting the material to controlled pressure and drawing it through a series of dies, this machine ensures uniformity and consistency, eliminating any imperfections or irregularities.

Ⅱ. Customer Case

Main Parameters of YLB-B-100-8/10x3
Finished Tube Length Range	≤8
Binding Post	IDEC Brand
Function	Material Recalibration

Ⅲ. Picture

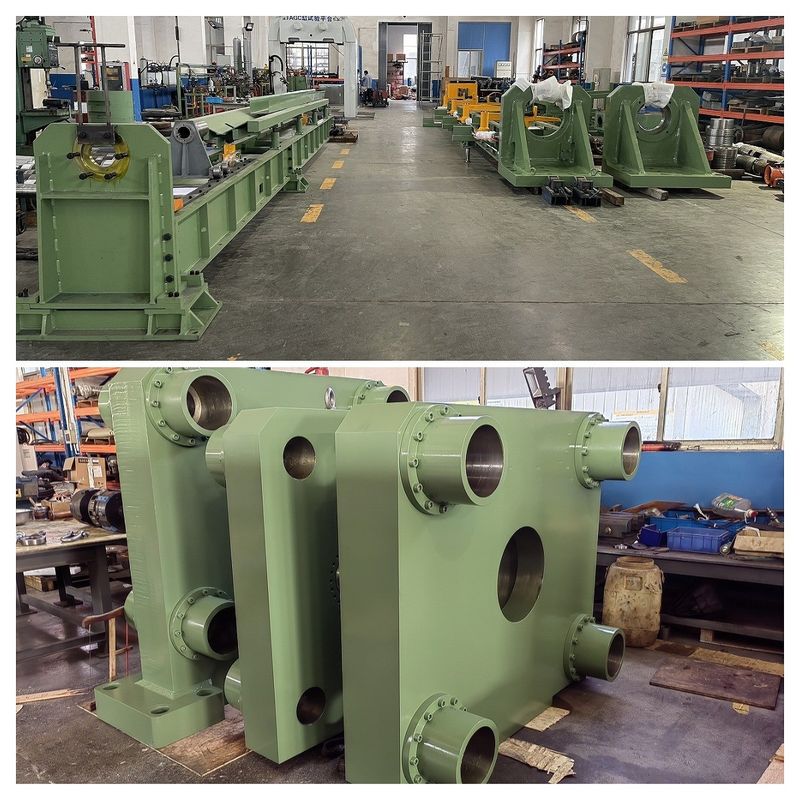

Ergonomic Design Cold Draw Bench Carbon Steel Hydraulic Cold Drawing Process 0
