Product Details:
|
| Experience: | Rich | Quality: | Reliable |
|---|---|---|---|
| Service: | Satisfied | Working Efficiency: | High |
| Max.drawing Force: | 2000T | Max.drawing Speed: | 20m/min |
| Advantage: | Successful And Excellent Customer Cases | Strong Suit: | Customized As Per Customers Requirements |
| High Light: | 20m/min cold drawn machinery,cold drawing machine Customized,20m/min cold drawing machine |
||
Drawing Force 50T-2000T Hydraulic Cold Drawing Machine
Ⅰ. Introduction
Hydraulic cold drawing machines employ hydraulic cylinders to exert force on the material, causing it to pass through a series of dies. This method offers increased power and control, making it suitable for demanding applications requiring high precision and strength.
Ⅱ. Parameters
| Model | Max.Drawing Force(KN) | Max.OD (mm) | Stroke(mm) |
| YLB50 | 500 | 89 | 10000 |
| YLB100 | 1000 | 127 | 10000 |
| YLB150 | 1500 | 168 | 10000 |
| YLB200 | 2000 | 219 | 10000 |
| YLB300 | 3000 | 351 | 12000 |
| YLB500 | 5000 | 426 | 12000 |
| YLB630 | 6300 | 529 | 12000 |
| YLB1000 | 10000 | 630 | 12000 |
| YLB1500 | 15000 | 710 | 12000 |
| YLB2000 | 20000 | 900 | 12000 |
| All models can be customized according to customers' requirements. | |||
Ⅲ. Key Features and Advantages
1. Superior Power: Hydraulic machines are known for their robust force capabilities, allowing them to process materials with higher hardness and strength.
2. High Precision: With fine-tuned hydraulic control, these machines excel in achieving exceptional precision, making them ideal for applications where accuracy is paramount.
3. Flexibility: Hydraulic cold drawing machines accommodate various materials, including stainless steel, alloy steel, and other metals, providing versatility to manufacturers catering to different industries.
4. Customization Options: These machines often offer more flexibility in terms of die configuration and setup adjustments, enabling manufacturers to fine-tune the process to meet specific requirements.

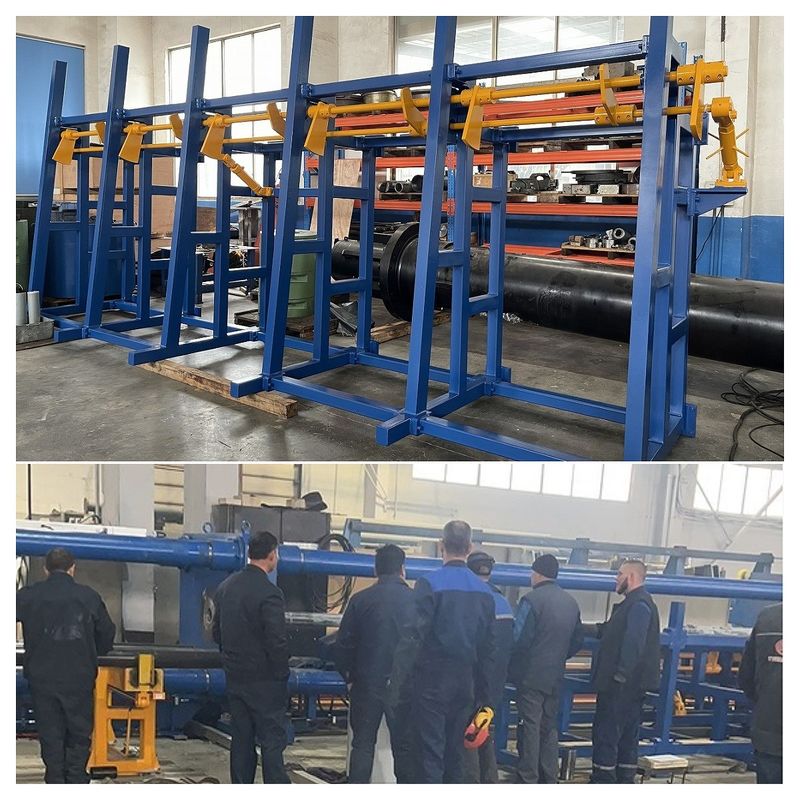

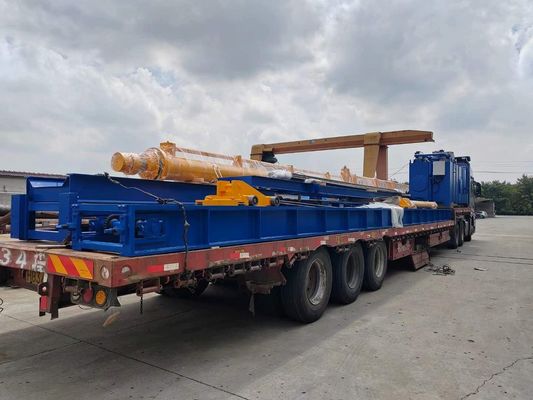

Ⅳ. Picture
