Product Details:
|
| Condition: | Brand-new | Warranty: | 1 Year |
|---|---|---|---|
| Stroke: | 20-50mm | Testing Before Delivery: | 100% |
| Type: | Piston Hydraulic Cylinder | Production Period: | 120 Days |
| Application: | Steel Plant | Function: | Provides Consistent, Accurate Gauge Control |
| Highlight: | compact agc hydraulic cylinder,compact piston hydraulic cylinder,piston agc hydraulic cylinder |
||
Automatic Gauge Control (AGC) Hydraulic Cylinder used in Steel Plant
Ⅰ.Introduction
AGC hydraulic cylinders are designed for precise gauge control. Its compact design and streamlined manufacturing process enable it to work in any industrial application, including steel mills.It is mainly used in Hydraulic AGC system for strip mill and metallurgical rolling mill hydraulic AGC system. The system is an important equipment which widely used in steel processing plants and aluminum processing plants to improve the thickness accuracy, control the shape and improve the qualified rate of strip.
Ⅱ. Parameters
|
Specification |
D1100/950-40mm |
|
Cleanliness Testing Standard |
≤ NAS level 5 |
|
Starting Pressure Standard |
＜ 5bar |
|
Piston Rod Deflection Standard |
≤ 0.2mm |
|
Internal Leakage Test Standard |
30min ≤ 50ml |

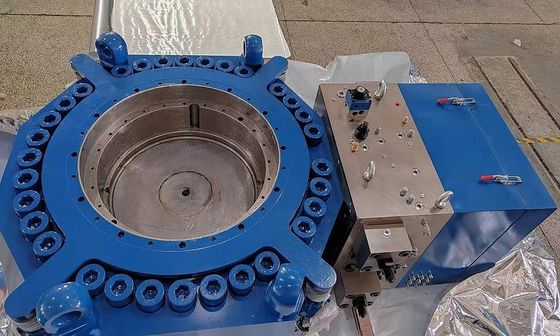

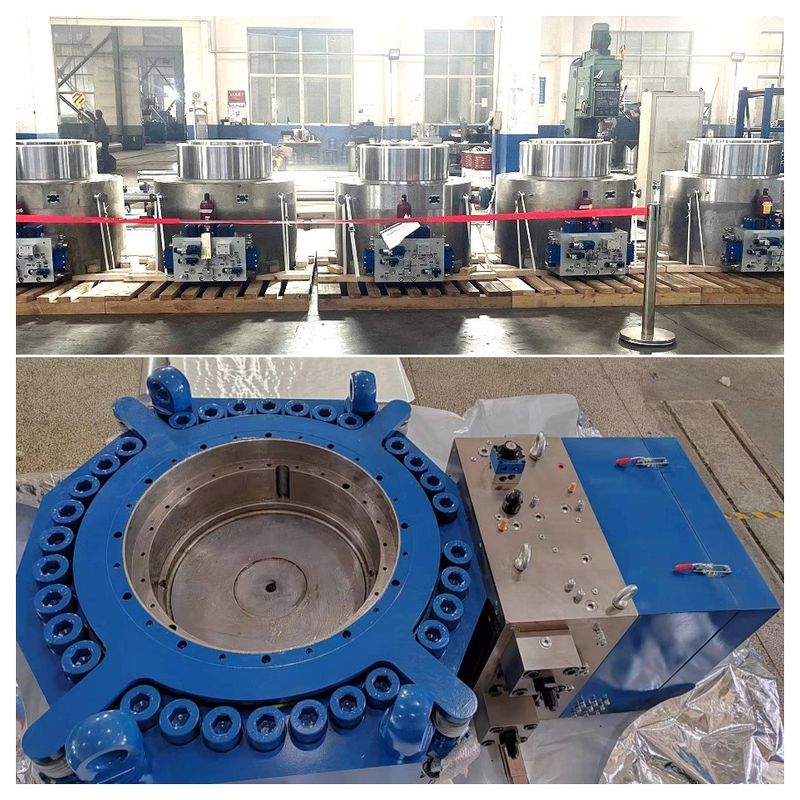

Ⅲ. Picture
