Product Details:
|
| Condition: | New Conditon | Warranty: | 12 Month |
|---|---|---|---|
| Stroke: | 20mm | Testing Before Delivery: | 100% Testing |
| Type: | Piston Type | Production Period: | 4 Month |
| Application: | Steel Mill | Function: | Provides Accurate Gauge Control |
| High Light: | agc cylinder hydraulic,Piston Type agc cylinder,hydraulic automatic gauge control cylinder |
||
Steel Mill Automatic Gauge Control Hydraulic Cylinder
Ⅰ.Introduction
Automatic Gauge Control Hydraulic Cylinders have high precision under the maximum load and can be positioned through a servo-hydraulic cylinder system. They maintain their precise position throughout the entire rolling process. Its purpose is to increase the quality of plate production by reducing the occurrence of plate bending or breakage. The cylinder is manufactured using a process that requires significant work to create. Sharp drills are used to form the piston. Sealing devices are placed to prevent fluid leakage and prevent debris from clogging the piston rod.
Ⅱ. Parameters
|
Cylinder Specification |
D1100/950-40mm |
|
Cleanliness Testing |
≤ NAS level 5 Standard |
|
Starting Pressure Standard |
＜ 5 bar |
|
Piston Rod Deflection |
≤ 0.2mm |
|
Internal Leakage Test Standard |
30minutes ≤ 50 ml |

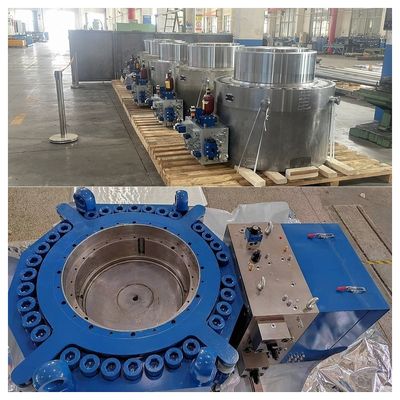

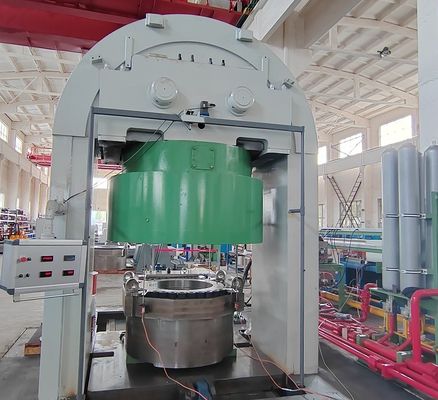

Ⅲ. Picture
