Product Details:
|
| Raw Material: | CK45 | Roundness Of Inner Hole: | 0.02mm |
|---|---|---|---|
| Spindle Speed: | Continuously Variable | Main Spindle Motor Power: | 135KW |
| Ball Screw Brand: | HIWIN Brand Taiwan | Roughness After Machining: | Ra 0.04 |
| CNC Controller: | FANUC | Requirements Of The Surface Of The Inner Hole After Machining: | Should Not Have Defects Such As Steps, Vibration Marks,etc |
| Highlight: | CK45 Skiving & Roller Burnishing Machine,Ra 0.04 Skiving & Roller Burnishing Machine |
||
SRBE10000/400SNC SRB Machine
Ⅰ. Description of Boring bar
The boring bar is made of a whole piece without splicing, and the material requirement is to be forged from Ni Cr Mo alloy. The inner hole and outer circle of the boring bar need to be precision machined, and the surface of the boring bar requires electroplating treatment. The high wear resistance and overall straightness are less than 0.1mm to ensure the high straightness of the processed workpiece.
Ⅱ. Parameters
| SRB Type |
SRBE10000/400SNC |
|
Maximum Inner Diameter |
φ400mm |
| Workpiece Length | 10M |
| One Tube Machining Time |
50 min |

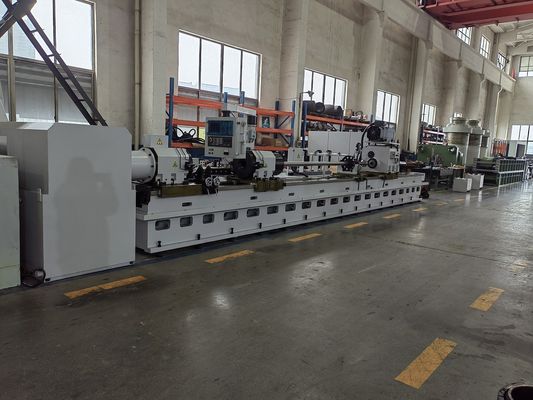

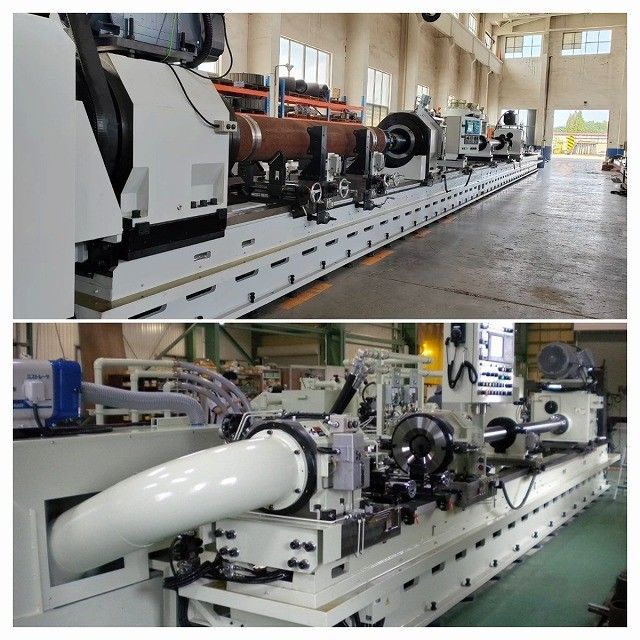

Ⅲ. Picture
