Product Details:
|
| Skiving Allowance: | 2mm At One Side | Sealing: | Japan NOK |
|---|---|---|---|
| Machine Itself Protective System: | Including | All Moving Surfaces Of The Machine Tool: | Have Independent Lubrication System |
| CNC Controller Brand: | SEMENS, FANUC,MITSUBISHI | Surface Roughness After Using SRB Machine: | Ra 0.037 |
| SRB Machine Machining Speed: | 160 Rpm/min | Requirements Of The Surface Of The Inner Hole After Machining: | Should Not Have Defects Such As Pits, Vertical Lines, Scratches, Etc |
| High Light: | 160 Rpm/Min SRB Machine,SRB Machine Single Rotation |
||
SRB Machine With Single Rotation
Ⅰ. Details
1. Adopting an integral casting bed with reinforced rib design to ensure the rigidity of the bed height and good shock absorption. After the treatment of stress relief, it ensures the long-term accuracy and stability of the machine.
2. This machine guide rail adopts a hard rail form, with high-frequency quenching and tempering treatment, with HRC55 or above and a quenching depth of 3-5mm. The contact between the machine tool moving parts such as the main axle box, pressure head, workpiece head, etc., and the guide rail is manually finely scraped to ensure accuracy and service life.
3. The ultra-wide guide rail design ensures the stability of the equipment.
Ⅱ. Parameters
| SRB Model |
SRBF750/200NC |
|
ID of Raw Workpiece |
200mm |
| Tube Length |
750mm |
| SRB Machining Method |
Workpiece Fixation, Tooling Rotation--Single Rotation |

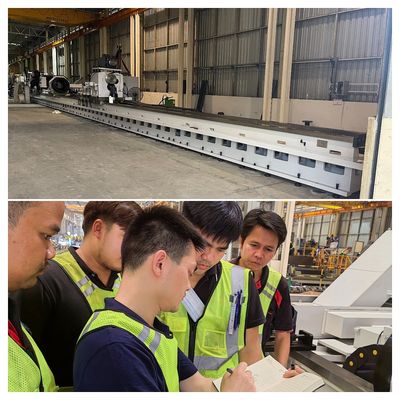

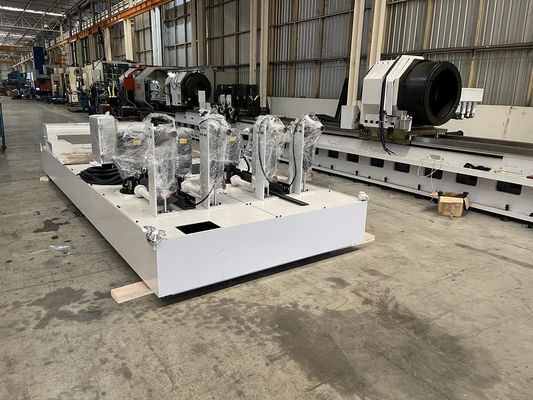

Ⅲ. Picture
