Product Details:
|
| Processing Aperture: | φ 30mm~ φ250mm | Inner Hole Roundness: | 0.02mm |
|---|---|---|---|
| Spindle Speed: | 10~1000RPM Continuously Variable | Main Spindle Motor Power: | 130KW |
| Ball Screw Brand: | Taiwan HIWIN | Spindle Cutting Feed Speed: | 5000mm/min |
| Pressure Head Sealing: | Japan NOK | Lubrication Method For Spindle Box: | Immersion Lubrication Method |
| High Light: | CNC Controller SRB Device,SRB Device 1000RPM |
||

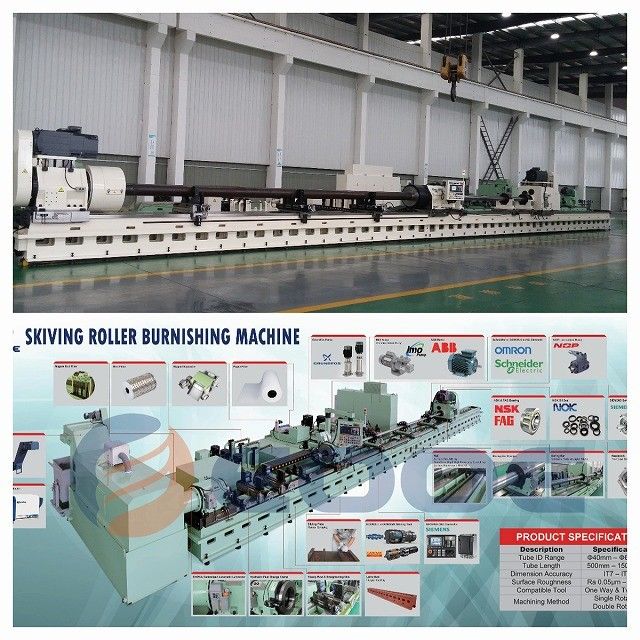

SRB Machine-Spindle Stepless Speed Regulation
Ⅰ. What requirements shall be met?
After machining the inner hole of the cylinder, the following requirements shall be met:
Requiring the machine tool to have an efficient inner hole processing function, which can meet the usual through-hole processing of hydraulic cylinder barrels;
Requiring the use of skiving and rolling techniques and the combination tool can be processed in one clamping process.
The tool should be a hydraulic combination tool, and the precision boring tool should have two sets of blades; Without three leaks, it can reliably complete the skiving, rolling, and precision machining of parts.
Ⅱ. Parameters
| SRB Type |
SRB3500/250NC2W |
|
Maximum ID |
φ250mm |
| Workpiece Length |
3500mm |
| Method |
Workpiece Rotation Tool Rotation |
Ⅲ. Parts Detail
Mist Separator: Reduce environmental pollution.
CNC Controller: SEMENS, FANUC,MITSUBISHI
