Product Details:
|
| Feature: | Excellent Hydraulic System | Maximum Return SpeedRaw Material: | ≤14m/min |
|---|---|---|---|
| Rated Working Pressure: | 20.5 Mpa | Loading Capacity: | 3t |
| Warranty: | 365 Days | Design: | Ergonomic Design |
| Hydraulic Oil Tank Capacity: | 5000L | ID Of Main Cylinder: | 380mm |
| High Light: | Cold Drawn Forging Head,Cold Drawn Forging Head Length,Hydraulic Cold Drawn Forging Head |
||
Ⅰ. Foring Head Length
The forging head is too short and the small car jaws cannot be clamped. If the forging head is too long, it will increase metal consumption and reduce the yield of cold drawn steel. According to actual statistical data from a certain factory, for a 4-meter-long billet, when the forging head length is 200 millimeters, the metal loss is 4.87%; When the forging head length is 120 millimeters, the metal cutting head loss is 2.91%. Therefore, in production, the forging head length is minimized as much as possible while ensuring that the steel can be firmly clamped by the jaws during drawing. Generally speaking, a more ideal forging head length should be equal to the sum of the length of the drawing car's jaws and the width of the die's fixed diameter belt and outlet cone.
Ⅱ. Customer Case
| Main Parameters of YLB-A-200-12/5 | |
| Machining Raw Material |
SS304,SS310,SS316 Stainless Steel Tube |
| Raw Material Wall Thickness | 10 |
| Raw Material Length Range | 6M |

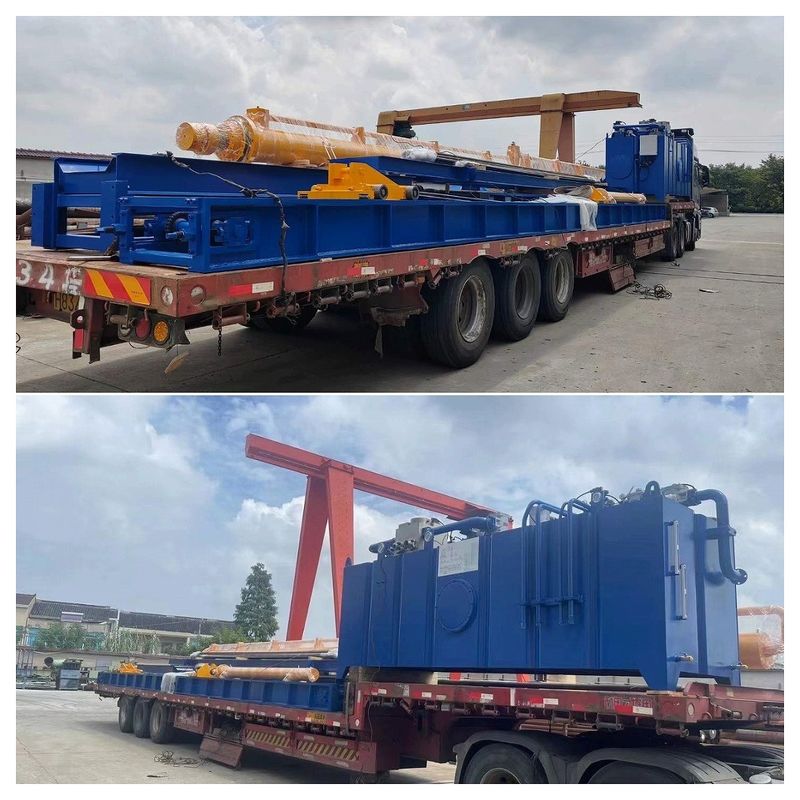

Ⅲ. Picture
