Product Details:
|
| Feature: | Superior Drawing Capabilities | Maximum Return SpeedRaw Material: | 14.5m/min |
|---|---|---|---|
| Frequency: | 50±1 | Core Rod Diameter: | Φ100mm |
| Function: | Precision Machining | Unloading Device: | Loading Capacity 3t |
| Main System Of Auxiliary System: | 11KW ×1 Unit | Advantage Of Ergonomic Design: | Ensuring Operators' Comfort And Safety |
| High Light: | Inclination Angle Cold Drawing Machine,Transition Part Cold Drawing Machine |
||
Ⅰ. Feature
In production, it is required that the transition part of the forging head should be smooth, except for the absence of ears, protrusions, and edges on the surface. The inclination angle of the transition section should be similar to the inlet cone angle of the drawing die, which is 10 °~1, and the maximum should not exceed 20 °. The transition angle for alloy steel and special-shaped steel should be smaller, generally between 5 ° and 12 °. The shape of the transition section of the forging head depends on the correct design of the forging head tool shape, that is, considering the corresponding transition angle on the shape of the forging die or the periodic pass of the rolling mill roll.
Ⅱ. Customer Case
| Main Parameters of YLB-A-200-12/5 | |
|
Feature |
Adjustable Pressure and Speed Settings |
| Wall Thickness | 16mm |
| Function |
Production Flexibility |

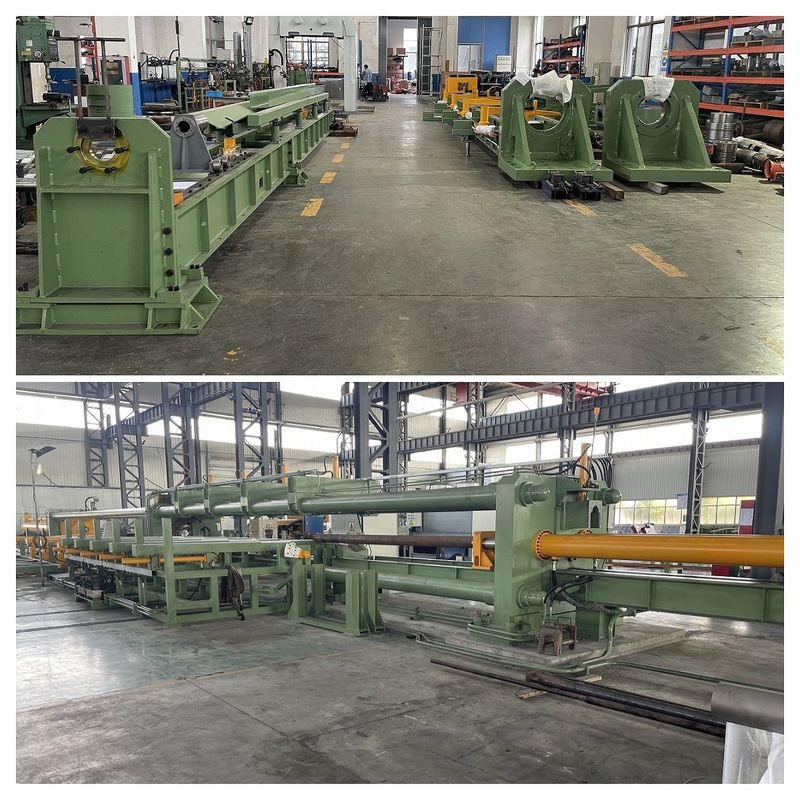

Ⅲ. Picture
