Product Details:
|
| Processing Aperture: | φ 150mm~ φ 400mm | Processing Hole Depth: | 1000mm~5000mm |
|---|---|---|---|
| Spindle Speed: | 10~1000RPM Continuously Variable | Main Spindle Motor Power: | 130KW |
| Spindle Fast Forward Speed: | 1mm~5000mm/min | Spindle Cutting Feed Speed: | 1mm~5000mm/min |
| Spindle Transmission Drive Mode: | AC Servo Motor & Ball Screw | Lubrication Method For Spindle Box: | Immersion Lubrication Method |
| High Light: | Hydraulic Cylinder Skiving Roller Burnishing Machine,Skiving Roller Burnishing Machine 2500mm |
||

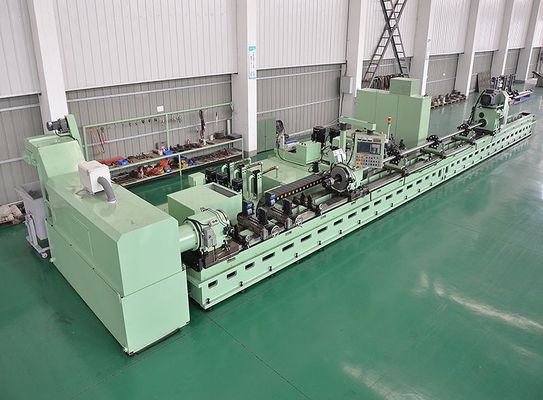

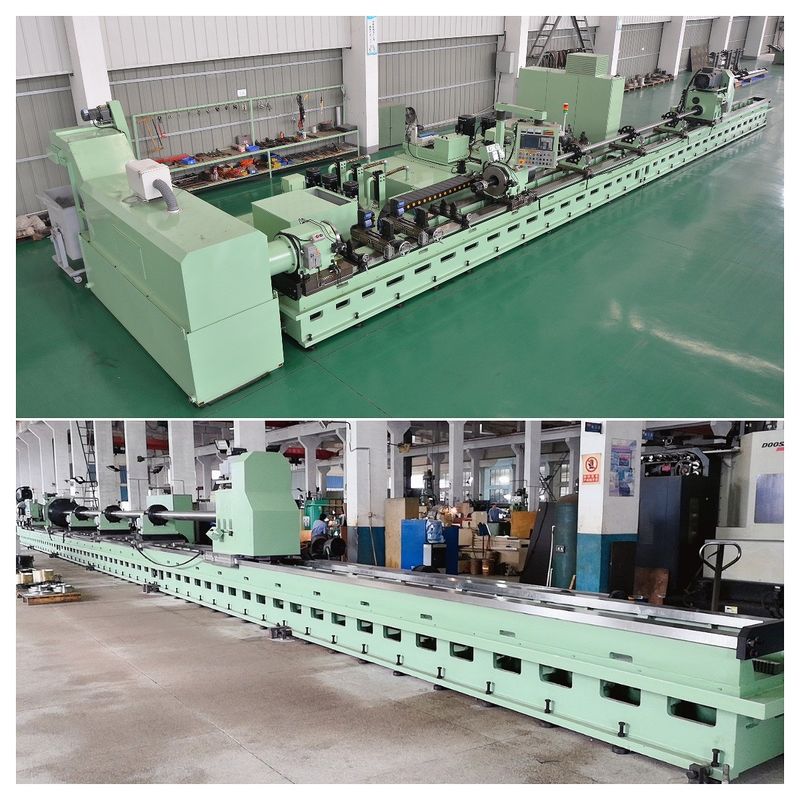

SRB500/40NC-CR1W Skiving Roller Burnishing Machine
Ⅰ. Introduction
EOOE double rotation SRB machine (workpiece rotation, tool rotation) sends the hydraulic cylinder to the workpiece support seat for initial positioning, and the pressure head is driven forward by a hydraulic motor. The workpiece head side is clamped by a 3-jaw chuck, and the pressure head side cone is positioned and pressed against the workpiece. The main shaft of the workpiece rotates, and the boring bar spindle rotates. The tool and boring bar are driven by a servo motor and a ball screw, and the inner hole of the cylinder is processed according to the program settings. This machine adopts a processing route to achieve rough boring, fine boring, and quick exit after rolling. After processing, the workpiece spindle chuck is released, and the pressure tailstock exits.
Ⅱ. Key Parameters
| Type |
SRB2500/250NC2W |
|
Maximum ID |
φ250mm |
| Length |
2500mm |
| Machining Method |
Workpiece Fixation, Tool Rotation |
Ⅲ. Parts Detail
Cutting Fluid Filtering System: Multi-filtering to assure purity of cutting fluid, increase machining quality.
Magnet Separator & Paper Filter: Separate tiny chip in the cutting fluid.
