ISO9001 Skiving And Roller Burnishing Machine 0.9 mm/r With Southern Centrifugal Pump

Large Image : ISO9001 Skiving And Roller Burnishing Machine 0.9 mm/r With Southern Centrifugal Pump

Product Details:

Place of Origin:	China
Brand Name:	EOOE Hydraulic
Certification:	ISO9001
Model Number:	SRBE4000/200SNC1W

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Plastic Wrap+Vacuum Packing+Iron Frame
Delivery Time:	4 Month
Payment Terms:	L/C, T/T
Supply Ability:	100 Sets/Year

Contact Now

ISO9001 Skiving And Roller Burnishing Machine 0.9 mm/r With Southern Centrifugal Pump

Description

Skiving Allowance:	2mm	S/P Main Motor:	SIEMENS
Machining Time/ Tube:	50 Min	Cooling Device Liquid Level Control:	Alarm When Cutting Oil Is Low
Feeding Speed:	0.9 Mm/r	W/H Workpiece Installation:	Cone Positioning, Clamping
W/H Fixture:	Manual Replacement Of Cone Disk	Function Of Internal Structure:	Eliminating Vibration When Boring Bar Rotation
Highlight:	ISO9001 Skiving And Roller Burnishing Machine , Skiving And Roller Burnishing Machine 0.9 mm/r

Skiving Roller Burnishing Machine with Southern Centrifugal Pump

Ⅰ. Description of Fuel Feeder:

Consisting of a positioning cone, a tool guide sleeve, a boring bar support sleeve, and a clamping device, there is a cutting fluid inlet on the oil feeder. When clamping the workpiece, position and tighten it from the tail end; During machining, the cutting fluid enters the cylinder body from the oil feeder and carries out chip removal.

Ⅱ. Parameters

SRB Specification Model	SRBE4000/200SNC1W
Inner Diameter of Raw Tube	200mm
Length of the Workpiece	5000mm
SRB Machine Machining Method	Workpiece Fixation and Tooling Rotation

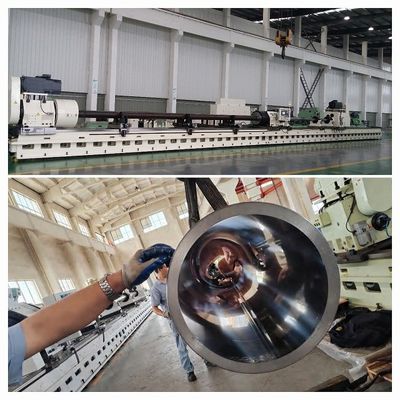

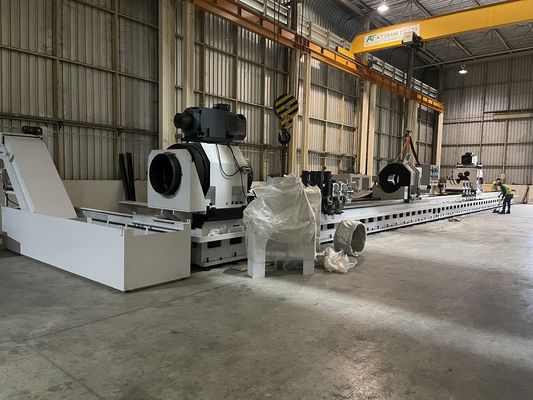

Ⅲ. Picture

ISO9001 Skiving And Roller Burnishing Machine 0.9 mm/r With Southern Centrifugal Pump 0
