Product Details:
|
| Workpiece Materials: | Forged Blanks | Sealing: | Japan NOK |
|---|---|---|---|
| Hardness Of Guide Rail: | HRC50 Or Above | Straightness Of The Whole Length: | 0.15mm |
| Centrifugal Pump: | Southern Pump Brand | Roughness Of The Finished Tube: | Ra 0.05 |
| SRB Machine Feeding Speed: | 0.9 Mm/r | W/H Fixture: | Manual Replacement Of Cone Disk |
| Highlight: | 0.9 Mm/R Skiving Roller Burnishing Machine,Ra 0.05 Skiving Roller Burnishing Machine |
||
Skiving Roller Burnishing Machine with Workpiece Rotation and Tooling Rotation
Ⅰ. Pressure Head and Workpiece Head Unit
1. The contact surface between the casting structure and the guide rail is manually scraped and polished, and centralized forced lubrication is used for lubrication.
2. The cone plate clamping adopts hydraulic clamping, which greatly reduces the replacement time compared to the screw-fixed quick change method.
3. The workpiece head and pressure head are both movable, and the clamping is carried out in sequence according to the program to ensure a good fit between the workpiece cone and the fixture.
Ⅱ. Parameters
| SRB Model |
SRBF900/300NC2W |
|
ID of Raw Workpiece |
300mm |
| Tube Length |
900mm |
| Machining Method |
Double Rotation |

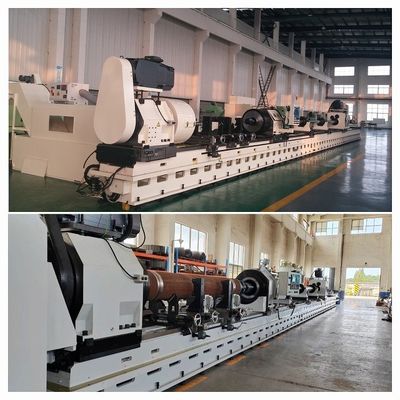

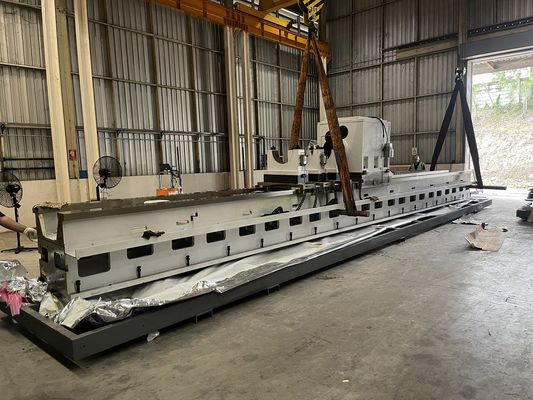

Ⅲ. Picture
