Product Details:
|
| Service: | Including | Indoor Environmental Temperature: | -10 ℃~45 ℃ |
|---|---|---|---|
| Precision Of Cylinder Bore Size: | IT7~IT8 | Pressure Test Of Cylinders: | 100% |
| Lubrication Brand: | Japan SHOWA | Installation And Commissioning Period: | 15-20 Days |
| Spindle Motor Power: | ≥ 55Kw | Tube Material: | 45, 25Mn, And 27SiMn Cold Drawn Tubes |
| High Light: | SRB Skiving And Roller Burnishing Device,Tool Rotation Skiving And Roller Burnishing Device |
||

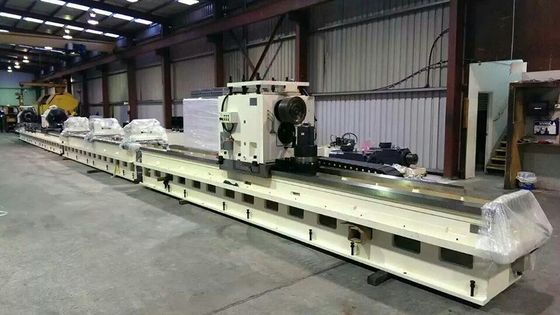

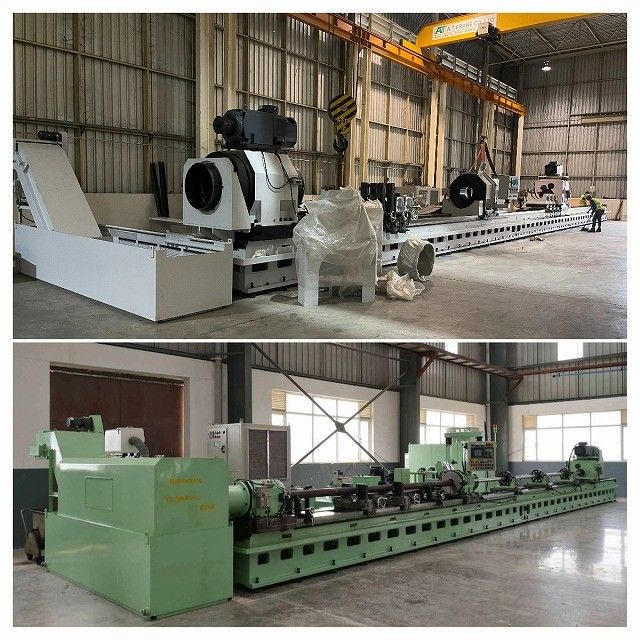

SRB - Better Internal Hole Processing Method
Ⅰ. Key Parameters
|
Type |
SRB12000/300NC1W |
|
Maximum ID |
300mm |
|
Length |
12000mm |
|
Machining Method |
Workpiece Rotation, Tool Rotation |
Ⅱ. Parts Detail of SRB Machine
Lathe Bed: HT300 material, high-frequency quenching, ultra-wide guide equipment, good stability, the weight of the body, installed without screws.
Main Shaft (Boring Bar): The boring bar with high-quality alloy steel material, solid round steel wool embryo processing, and carburizing and quenching treatment, to ensure the boring bar's high-rigidity and wear resistance, to ensure the machining accuracy of the workpiece.
