Product Details:
|
| Workpiece Materials: | Forged Blanks | Raw Tube Length: | 6150mm |
|---|---|---|---|
| CNC Controller: | FANUC | Requirements Of The Surface Of The Inner Hole After Machining: | Have No Defects Like Scars, Black Skin, White Spots, Etc; |
| The Control System: | SIEMENS 828D System | SRB Machine Cooling Device Capacity: | Integrated Fuel Tank 4000L |
| W/H Fixture: | Manual Replacement Of Cone Disk | SRB Machine Protective Device: | Reliable |
| Highlight: | Ra 0.037 SRB Machine,Workpiece Fixation SRB Machine |
||
SRB Machine with Ra 0.037 Roughness of the Finished Tube
Ⅰ. Details of Boring Bar Box
1) Adopting high-power drive motors, with a reasonable speed range;
2) Be driven by gear and rack or screw;
3) The drive motor and feed motor are equipped with torque sensors, which servo adjust the cutting amount;
4) Equipped with soft and hard limit devices on the boring bar box on the lathe bed to protect the equipment;
5) When boring, skiving, and rolling, the boring bar does not rotate, and the boring bar box can be locked.
Ⅱ. Main Parameters
| SRB Name |
SRBE8000/200SNC1W |
|
ID of Raw Workpiece |
200mm |
| Length of the Raw Tube |
9000mm |
| SRB Machine Machining Method | Workpiece Fixation and Tooling Rotation |

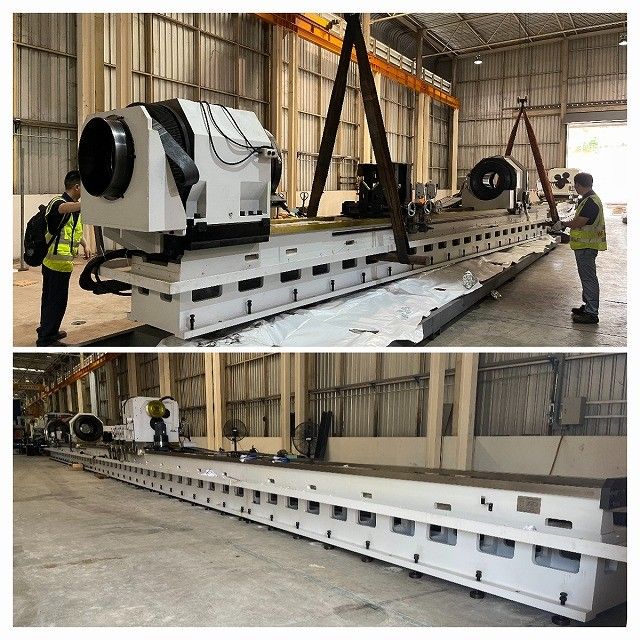

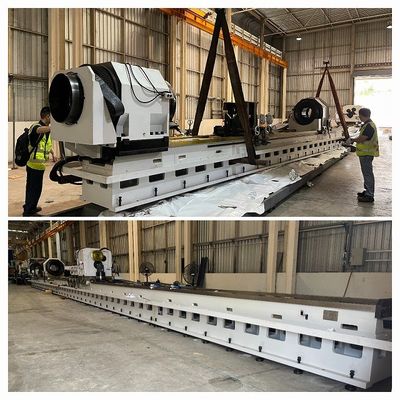

Ⅲ. Picture
