Product Details:
|
| Skiving Allowance: | 2mm | S/P Drive Mode: | Servo Motor+Ball Screw |
|---|---|---|---|
| Blockage Detection Device: | Including | Cooling Device Liquid Level Control: | Alarm When Cutting Oil Is Low |
| Feeding Speed: | 0.9 Mm/r | CNC Controller Brand: | MITSUBISHI |
| Machine Protection: | Can Fit The Needs Of GB4053.3-1993 | Function Of Internal Structure: | Eliminating Vibration When Boring Bar Rotation |
| Highlight: | SRB Machine 150 Rpm/Min,Customized SRB Machine |
||
SRB Machine with Machining Speed 150rpm/min
Ⅰ. Description of Boring Bar and Boring Bar Bracket
1) The Boring bar meets the customer's requirements, with a length of 5 meters, with boring processing and random matching;
2) The boring bar bracket adopts a split structure, and when replacing the boring bar, the boring bar and support sleeve are replaced together;
3) There is a reasonable lubrication method between the boring bar and the support sleeve.
Ⅱ. Parameters
| SRB Specification Model |
SRBE5000/150SNC1W |
|
Inner Diameter of Raw Tube |
150mm |
| Length of the Workpiece |
5000mm |
| SRB Machine Machining Method | Workpiece Fixation and Tooling Rotation |

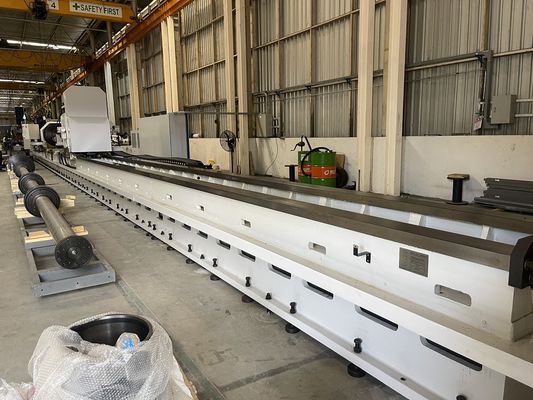

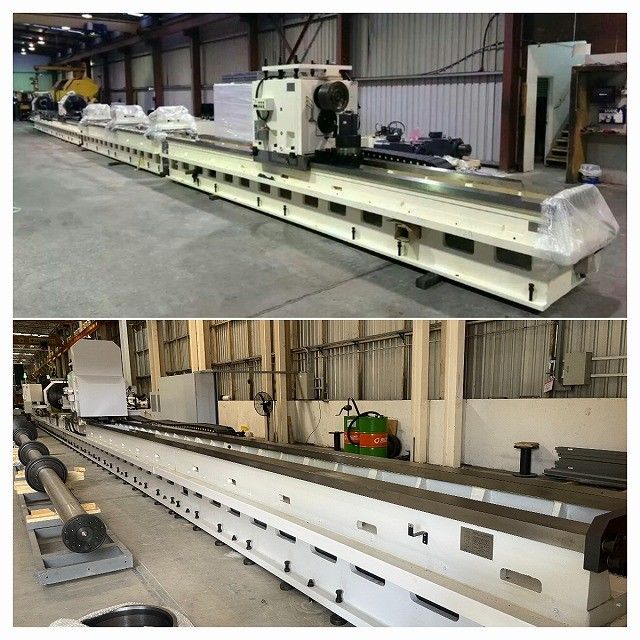

Ⅲ. Picture
