Product Details:
|
| Protection System: | Safe | Width Of Guide Rail: | 150mm |
|---|---|---|---|
| Blockage Detection Device: | Available | CNC Controller: | SEMENS Brand |
| Workpiece Materials: | Hot-rolled Tubes | One Tube Machining Time: | 25 Minutes |
| Common Processing Methods For Forging Blanks: | Push Boring+Honing | Alternative Processing Method: | Workpiece Rotation+Boring Bar Rotation |
| Highlight: | SRB Machine Workpiece Rotation,SRB Machine ISO9001 |
||
High-Frequency Quenching Guide Rail SRB Machine
Ⅰ. Detail of Hydraulic System:
1) The hydraulic system is used for automatic tightening and contraction of scraping and rolling tools, as well as driving other hydraulic components;
2) The working pressure of the hydraulic system is determined by the manufacturer based on the working pressure of each hydraulic component;
3) For commonly disassembled oil pipes, use quick-change joints and use soft oil pipes.
Ⅱ. Parameters
| SRB Model |
SRBF550/200NC |
|
ID of Raw Workpiece |
200mm |
| Length of the Tube |
550mm |
| SRB Machine Machining Method | Double Rotation |

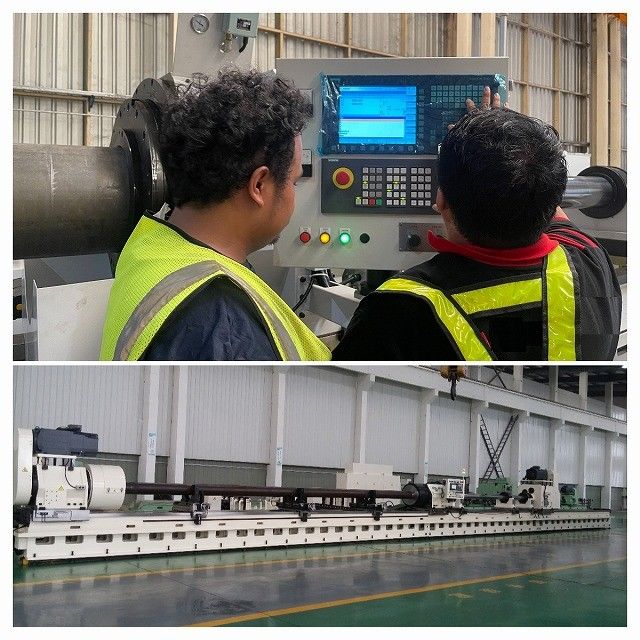

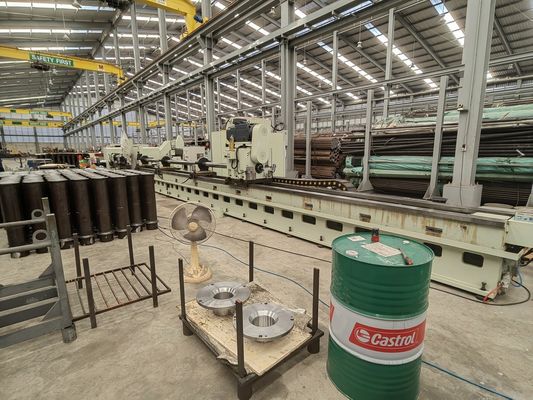

Ⅲ. Picture
