Product Details:
|
| Workpiece Materials: | Forged Blanks, Cold Drawn Tubes | Sealing: | Japan NOK |
|---|---|---|---|
| Hardness Of Guide Rail: | HRC50 Or Above | All Moving Surfaces Of The Machine Tool: | Have Independent Lubrication System |
| CNC Controller Brand: | SEMENS, FANUC,MITSUBISHI | Auxiliary Time: | 1 Minute |
| Brand Of CNC Controller: | MITSUBISHI | Requirements Of The Surface Of The Inner Hole After Machining: | Should Not Have Defects Such As Pits, Vertical Lines, Scratches, Etc |
| Highlight: | SRB Machine Tooling Rotation,ISO9001 SRB Machine |
||
Workpiece Fixation And Tooling Rotation SRB Machine
Ⅰ. Detail of Spindle Box
1. The main axle box made of castings is manually scraped and polished on the contact surface with the guide rail. The transmission gears are ground after heat treatment to improve meshing accuracy and wear resistance.
2. The lubrication of gear transmission adopts immersion lubrication, the lubrication of bearings is forced lubrication, and the lubrication of the contact surface with the guide rail is centralized lubricating.
Ⅱ. Parameters
| SRB Model |
SRBF850/200NC |
|
ID of Raw Workpiece |
200mm |
| Tube Length |
850mm |
| The Retraction Speed |
is set to 3m/min |

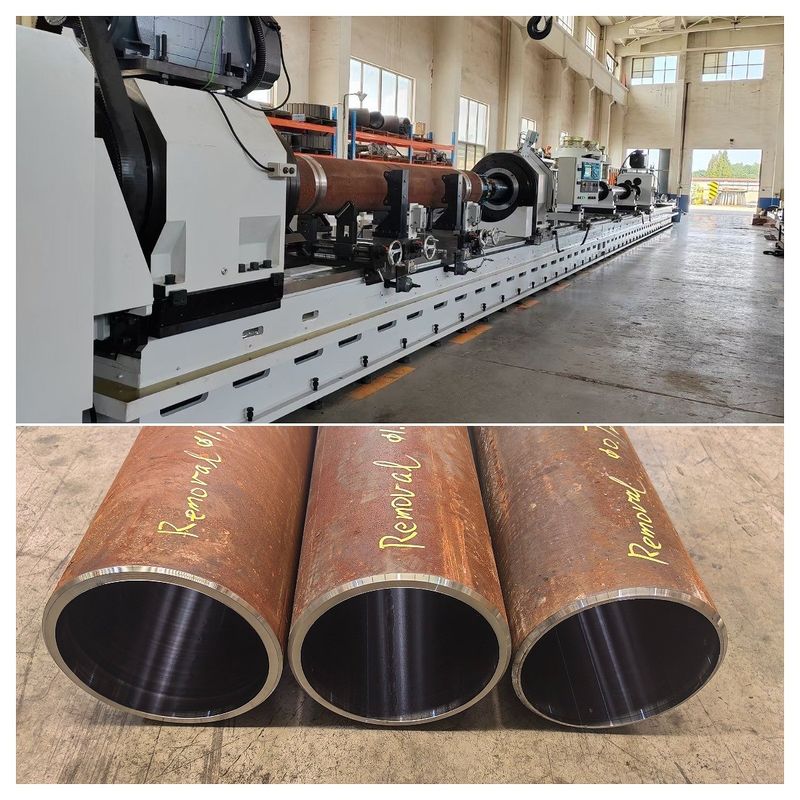

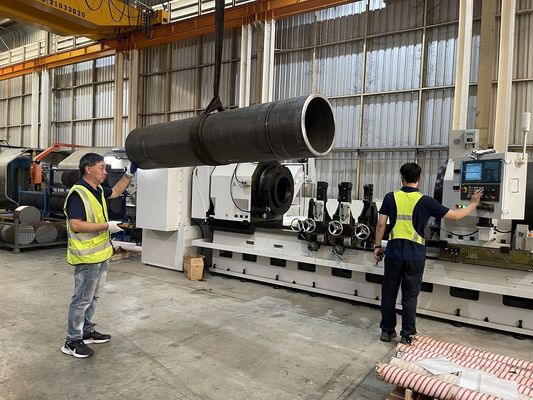

Ⅲ. Picture
