Product Details:
|
| Cooling Device Capacity: | Integrated Fuel Tank 4000L | Sealing: | Japan NOK |
|---|---|---|---|
| Hardness Of Guide Rail: | HRC50 Or Above | Straightness Of The Whole Length: | 0.15mm |
| Centrifugal Pump: | Southern Pump Brand | S/P Fast Forward Speed: | 1mm~4000mm/min |
| SRB Machine Cooling Device Chip Conveyor: | Chain Type | Requirements Of The Surface Of The Inner Hole After Machining: | Should Not Have Defects Such As Pits, Vertical Lines, Scratches, Etc |
| Highlight: | SRB Machine Boring Bar Fixation,ISO SRB Machine,Workpiece Rotation SRB Equipment |
||
Boring Bar Fixation And Workpiece Rotation SRB Machine
Ⅰ. Pressure Head and Workpiece Head Unit
1. The drive of the pressure head is a hydraulic pump+screw drive, and the action of the workpiece head is a hydraulic drive.
2. The workpiece head and pressure head are automatically hydraulically locked with the guide rail during processing, ensuring safety during processing.
Ⅱ. Parameters
| SRB Model |
SRBF1000/350NC1W |
|
ID of Raw Workpiece |
350mm |
| Tube Length |
10m |
| Electric Meter to the Control Cabinet |
Including in the Contract |

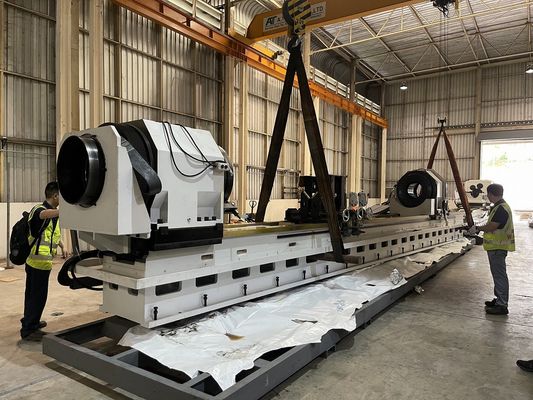

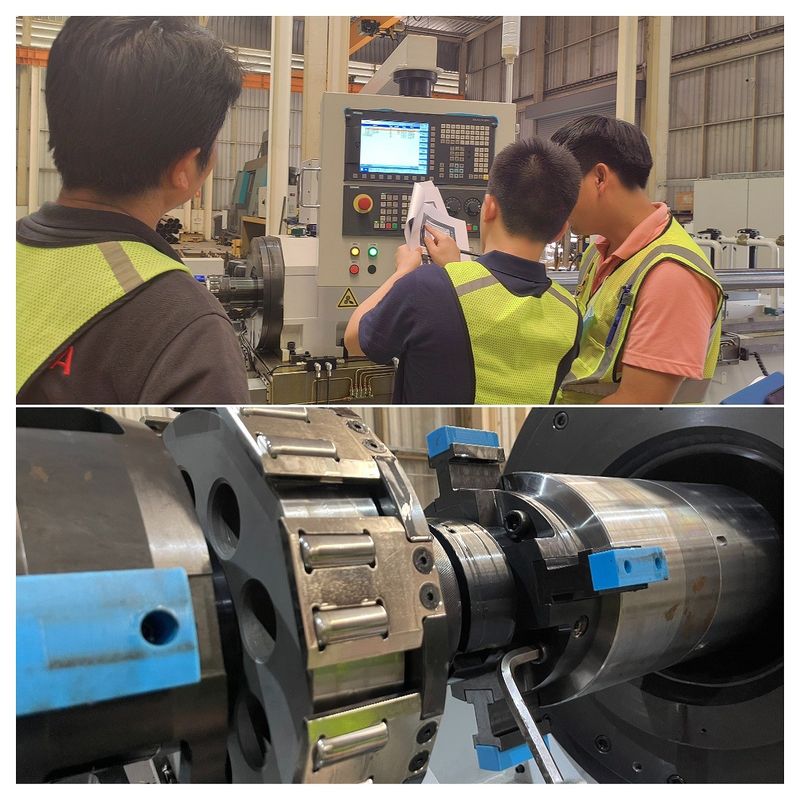

Ⅲ. Picture
