Ultra Wide Guide Rail SRB Machine With NSK Bearing 2000mm Workpiece Length

Ultra Wide Guide Rail SRB Machine With NSK Bearing 2000mm Workpiece Length

Ultra Wide Guide Rail SRB Machine With NSK Bearing 2000mm Workpiece Length

Ultra Wide Guide Rail SRB Machine With NSK Bearing 2000mm Workpiece Length

Large Image : Ultra Wide Guide Rail SRB Machine With NSK Bearing 2000mm Workpiece Length

Product Details:

Place of Origin:	China
Brand Name:	EOOE Hydraulic
Certification:	ISO9001
Model Number:	SRBF2000/300NC2W

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Plastic Wrap+Vacuum Packing+Iron Frame
Delivery Time:	4 Month
Payment Terms:	L/C, T/T
Supply Ability:	100 Sets/Year

Contact Now

Ultra Wide Guide Rail SRB Machine With NSK Bearing 2000mm Workpiece Length

Description

Workpiece Materials:	Cold Drawn Tubes	Sealing:	Japan NOK
Hardness Of Guide Rail:	HRC50 Or Above	Straightness Of The Whole Length:	0.15mm
Centrifugal Pump:	Southern Pump Brand	Processing Allowance:	7.5mm On One Side
Guide Rail Design:	Ultra Wide	The Estimated Time For Processing A Workpiece:	15 Minutes
Highlight:	NSK Bearing SRB Machine , SRB Machine 2000mm

SRB Machine With NSK Bearing

Ⅰ. Pressure Head and Workpiece Head Unit

1. The drive of the pressure head is a hydraulic pump+screw drive, and the action of the workpiece head is a hydraulic drive.

2. The workpiece head and pressure head are automatically hydraulically locked with the guide rail during processing, ensuring safety during processing.

Ⅱ. Parameters

SRB Model	SRBF2000/300NC2W
Inner Diameter of Raw Tube	300mm
Workpiece Length	2000mm
Electric Meter to the Control Cabinet	Available when sign the Contract

Ⅲ. Picture

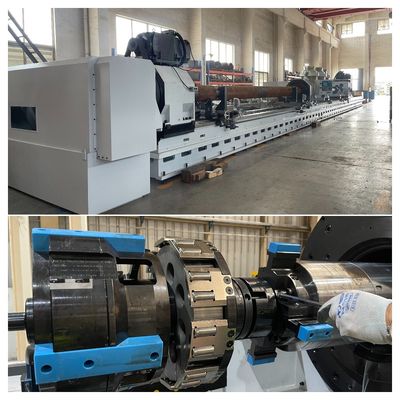

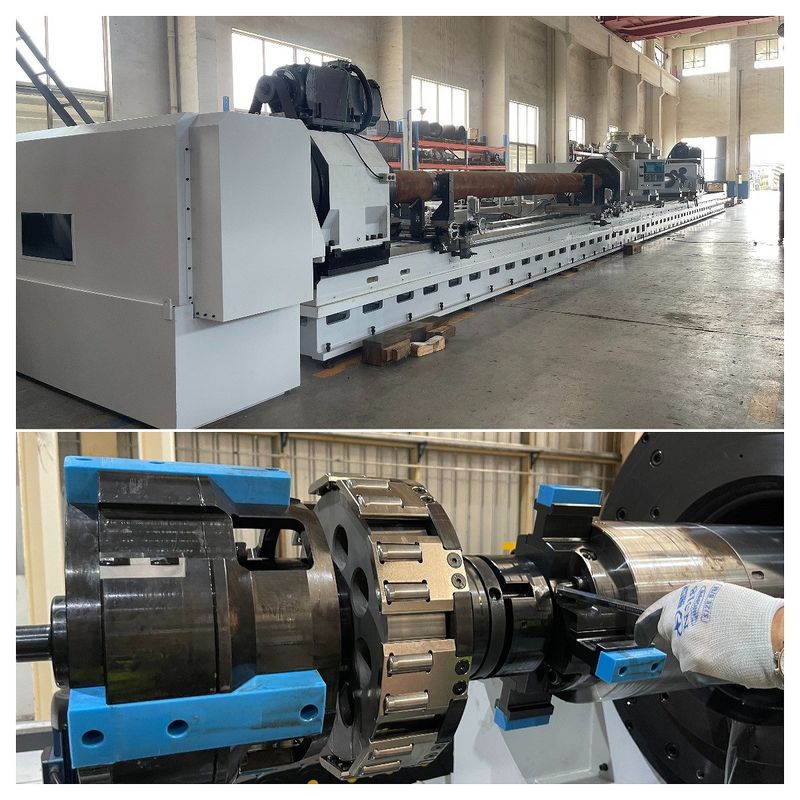

Ultra Wide Guide Rail SRB Machine With NSK Bearing 2000mm Workpiece Length 0
