Product Details:
|
| Raw Material: | 45# Steel | Raw Workpiece Length: | 6000mm |
|---|---|---|---|
| SRB Machine Feeding Speed: | 0.8 Mm/r | Internal Structure Function: | Effectively Eliminate Vibration During Boring Bar Rotation |
| Spindle Motor: | SIEMENS Brand | S/P Fast Forward Speed: | 1mm~4000mm/min |
| W/H Fixture: | Manual Replacement Of Cone Disk | One Tube SRB Process Machining Time: | 20 Min |
| Highlight: | Steel Skiving And Roller Burnishing Equipment,0.8 Mm/R Skiving And Roller Burnishing Equipment |
||
With Mitsubishi Electrical Components Skiving Roller Burnishing Machine
Ⅰ. Basic Functions of the Control System
The control system should have at least the following basic functions:
a) The equipment can be operated automatically and manually. The boring bar spindle rotation should have a load detection function and be able to display the load in real-time on the panel. When the load exceeds the limit, it can be immediately stopped for protection.
b) Equipped with a servo system overload automatic protection and alarm device, the main control screen should be equipped with industrial air conditioning or fans.
Ⅱ. Parameters
| SRB Specification Model |
SRBE8000/300SNC2W |
|
Machining Allowance |
2mm |
| ID of Tube Before Using SRB Machine |
285mm |
| SRB Machine Cooling Device Capacity |
4000L |

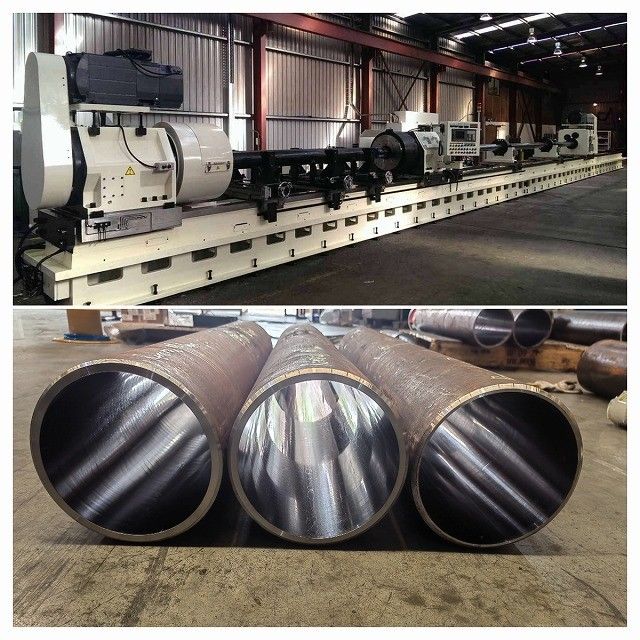

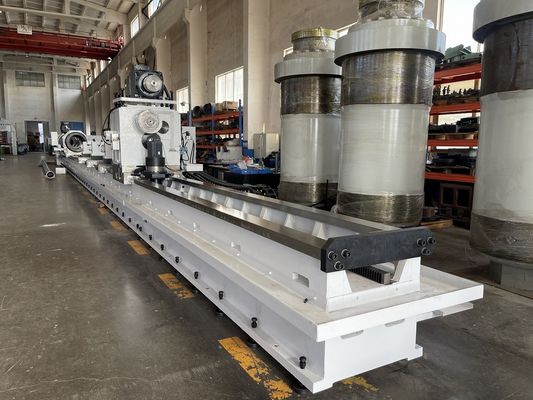

Ⅲ. Picture
