Workpiece Fixation Tooling Rotation Skiving Burnishing Machine Ra0.037 Roughness

Large Image : Workpiece Fixation Tooling Rotation Skiving Burnishing Machine Ra0.037 Roughness

Product Details:

Place of Origin:	China
Brand Name:	EOOE Hydraulic
Certification:	ISO9001
Model Number:	SRBE8000/200SNC1W

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Plastic Wrap+Vacuum Packing+Iron Frame
Delivery Time:	4 Month
Payment Terms:	L/C, T/T
Supply Ability:	100 Sets/Year

Contact Now

Workpiece Fixation Tooling Rotation Skiving Burnishing Machine Ra0.037 Roughness

Description

Raw Workpiece Material:	CK45 Material	Raw Workpiece Length:	6000mm
SRB Machine Feeding Speed:	0.8 Mm/r	Requirements Of The Surface Of The Inner Hole After Machining:	Have No Defects Like Scars, Black Skin, White Spots, Etc;
Feeding Speed:	0.9 Mm/r	SRB Machine Cooling Device Capacity:	Integrated Fuel Tank 4000L
W/H Fixture:	Manual Replacement Of Cone Disk	Blockage Detection Device:	Available In The Contract
Highlight:	Workpiece Fixation Skiving Burnishing Machine , Skiving Burnishing Machine Ra0.037

Ra0.037 Roughness After Using Skiving Roller Burnishing Machine

Ⅰ. Three Processing Methods

1. Small margin skiving processing: workpiece not rotating+boring bar rotating

2. Excessive boring machining: workpiece rotation+boring bar not rotating

3. Alternative processing method: workpiece rotation+boring bar rotation

Ⅱ. Parameters

SRB Specification Model	SRBE8000/200SNC1W
Inner Diameter of Raw Tube	200mm
Length of the Workpiece	9000mm
SRB Machine Machining Method	Workpiece Fixation and Tooling Rotation

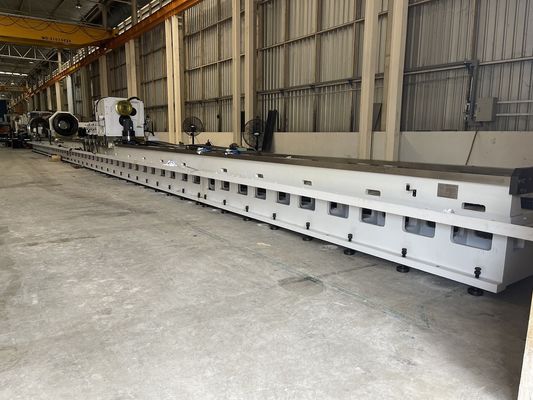

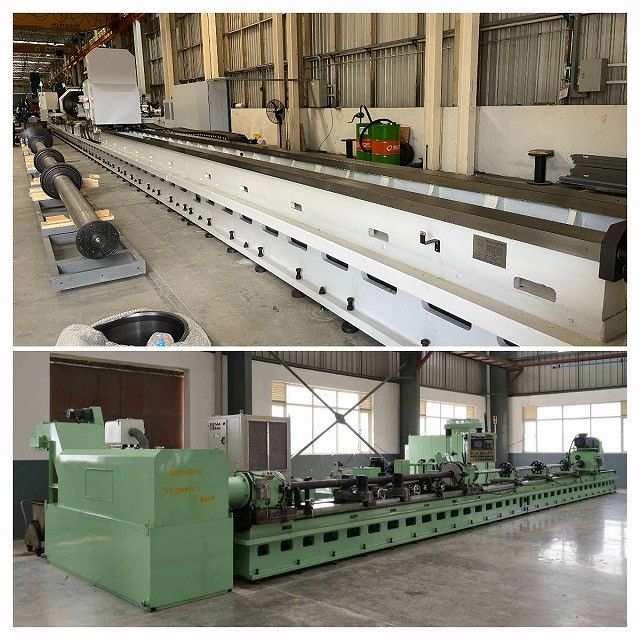

Ⅲ. Picture

Workpiece Fixation Tooling Rotation Skiving Burnishing Machine Ra0.037 Roughness 0
