Product Details:
|
| Roundness Of The Finished Tube: | 0.02um | S/P Main Motor: | SIEMENS |
|---|---|---|---|
| Raw Tube Material: | CK45 | SRB Machine Machining Speed: | 150 Rpm/min |
| Roughness After Machining: | Ra 0.04 | One Tube Machining Time: | 20 Min |
| Machine Protection: | Can Meet GB4053.3-1993 Standard | Cooling Device Pressure Pump Output: | MAX 600L/min |
| Highlight: | Tooling Rotation Skiving Roller Burnishing Machine,Workpiece Rotation Skiving Roller Burnishing Machine |
||
Skiving Roller Burnishing Machine with HT300 Integral Casting Lathe Bed
Ⅰ. Detail of Chip Removal System and Cutting Fluid Cooling System:
1) The cutting fluid flow rate meets the cylinder diameter requirements φ Chip removal requirements during 220-500mm cutting;
2) Chip removal uses a belt-type chip removal machine to separate iron chips from cutting fluid;
3) The cutting fluid is filtered by a magnetic separator before flowing back to the oil tank;
4) The cutting fluid flow rate is 800-2000L/min, and the oil tank volume meets the cooling requirements.
Ⅱ. Parameters
| SRB Model |
SRBF300/50NC |
|
Guide Rail Width |
150mm |
| Spacing of Guide Rail |
800mm |
| Machining Method | Workpiece Fixation, Tooling Rotation |

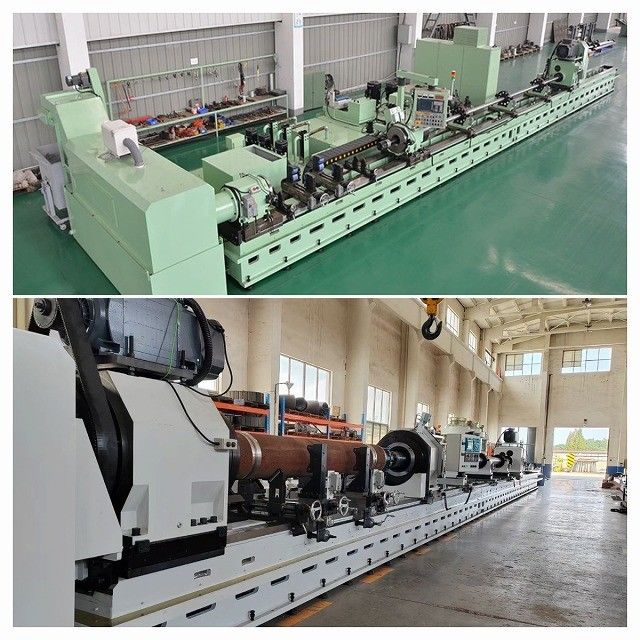

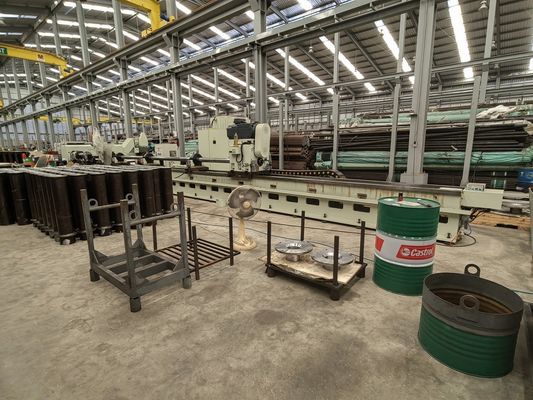

Ⅲ. Picture
