Product Details:
|
| Protection System: | Safe | Guide Rail Hardness: | HRC50 |
|---|---|---|---|
| Blockage Detection Device: | Available In The Contract | Function Of Machine Protection Device: | To Prevent The Overflow Of Cooling Fluids From Causing Damage To The Equipment |
| SRB Machine Feeding Speed: | 0.8 Mm/r | Surface Roughness: | Ra 0.037 |
| Common Processing Methods For Forging Blanks: | Push Boring+Honing | Application Of Shock-absorbing Seat: | It Works During The High-speed Rotation Of The Boring Bar |
| Highlight: | 0.8 mm/r Skiving Roller Burnishing Machine,Ra 0.037 Skiving Roller Burnishing Machine |
||
Skiving Roller Burnishing Machine with Ultra Wide Guide Rail Design
Ⅰ. Detail of Tooling:
1) The cutting tool has a rough boring (2-12mm) cutting function, and the manufacturer can separately equip a rough boring head;
2) The precision boring cutter, roller, and connecting flange adopt a floating connection to improve the quality of the inner hole;
3) The boring cutter and roller are driven by hydraulic pressure for expansion and contraction.
Ⅱ. Parameters
| SRB Model |
SRBF450/150NC |
|
ID of Raw Workpiece |
147mm |
| Tube Length |
450mm |
| P/H fixture |
Manual Replacement of Cone Plat |

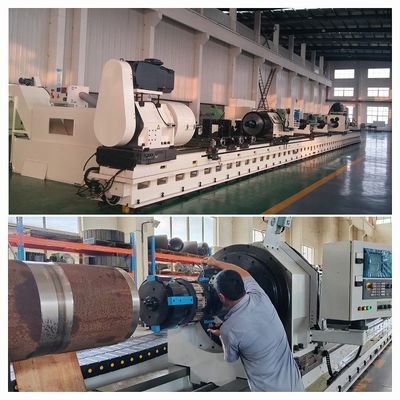

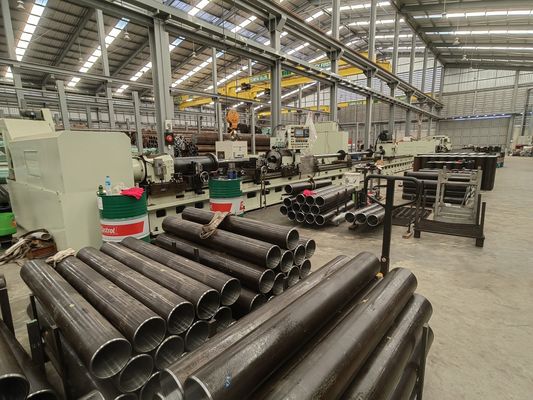

Ⅲ. Picture
