Product Details:
|
| Skiving Allowance: | 2mm | Guide Rail Hardness: | HRC50 |
|---|---|---|---|
| Blockage Detection Device: | Including When Sign The Contract | All Moving Surfaces Of The Machine Tool: | Have Independent Lubrication System |
| SRB Process Machining Time/ Tube: | 35 Min | Roundness Of The Tube: | 0.02um |
| Machine Protection: | Can Fit The Needs Of GB4053.3-1993 | Requirements Of The Surface Of The Inner Hole After Machining: | Should Not Have Defects Such As Pits, Vertical Lines, Scratches, Etc |
| Highlight: | Double Rotation Skiving Roller Burnishing Machine,Skiving Roller Burnishing Machine ISO9001 |
||
Double Rotation Skiving Roller Burnishing Machine
Ⅰ. Introduction
1. The boring bar is made of high-quality high-speed alloy steel material, processed from solid round steel blanks, and subjected to quenching and carburizing treatment to ensure high rigidity and wear resistance of the boring bar, and to ensure the machining accuracy of the workpiece.
2. The equipment is equipped with a comprehensive anomaly detection system, such as filter blockage alarm, spindle load alarm, abnormal cutting oil pressure, etc., to ensure that the equipment is produced under normal conditions and to ensure high-quality processing of each cylinder.
Ⅱ. Parameters
| SRB Model |
SRBF750/200NC |
|
ID of Raw Workpiece |
200mm |
| Tube Length |
750mm |
| Machining Method |
Workpiece Rotation, Tooling Rotation |

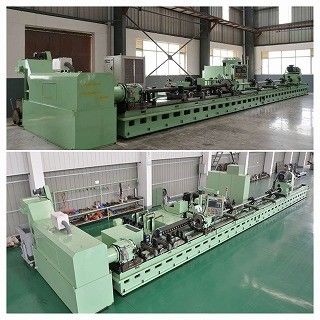

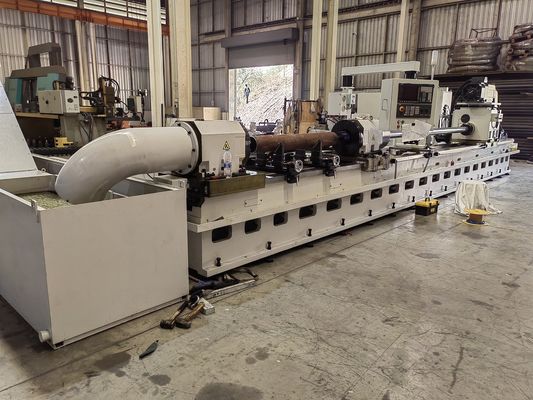

Ⅲ. Picture
