Product Details:
|
| Workpiece Materials: | Forged Blanks, Cold Drawn Tubes | The Control System: | SIEMENS 828D |
|---|---|---|---|
| Hardness Of Guide Rail: | HRC50 Or Above | All Moving Surfaces Of The Machine Tool: | Have Centralized Automatic Lubrication System |
| CNC Controller Brand: | FANUC,MITSUBISHI | The Retraction Speed: | 4m/min |
| Brand Of CNC Controller: | MITSUBISHI | ||
| Highlight: | Skiving Roller Burnishing Machine Workpiece Fixation,Skiving Roller Burnishing Machine Tooling Rotation |
||
Skiving Roller Burnishing Machine with Workpiece Fixation and Tooling Rotation
Ⅰ. Detail of Spindle Box
1. The machine tool is set with high and low gears, with infinite speed regulation within the gears. The high and low gears are switched to hydraulic mode, replacing traditional manual gear shifting.
2. The spindle is driven by a high-power AC servo motor, and the feed is driven by a servo motor+ball screw.
Ⅱ. Parameters
| SRB Model |
SRBF850/200NC1W |
|
Inner Diameter of Raw Workpiece |
200mm |
| Workpiece Length |
850mm |
| Protection System |
Safe and Reliable |

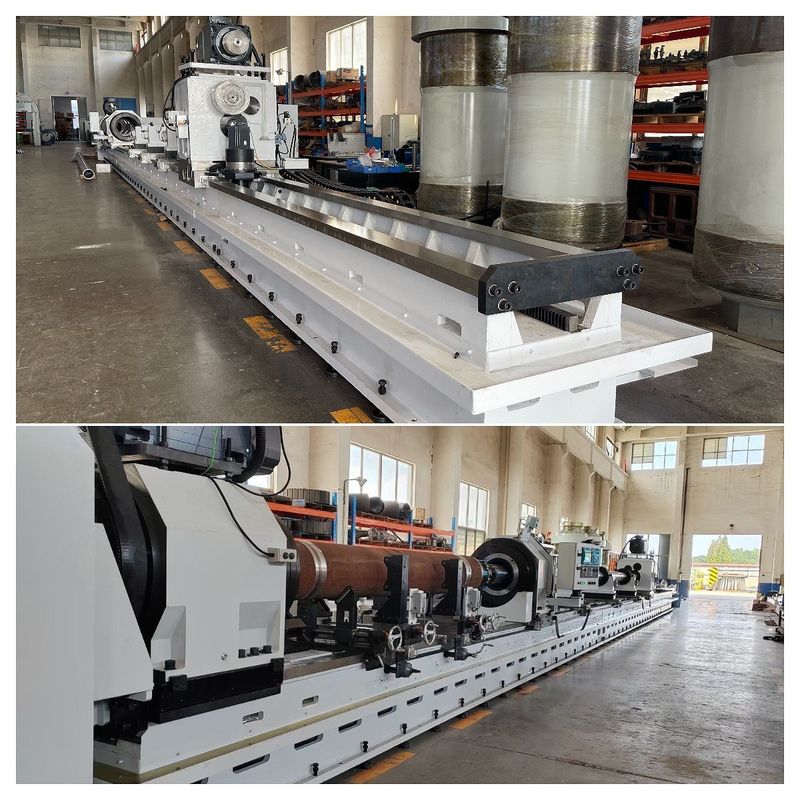

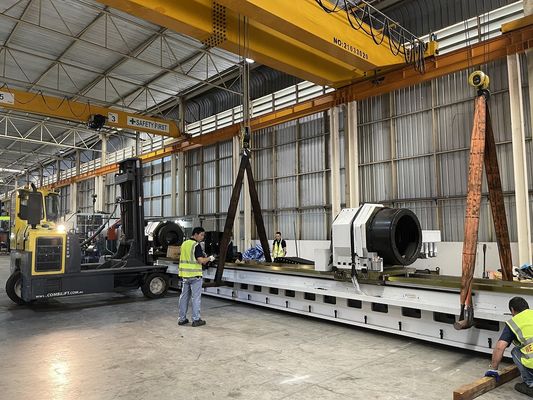

Ⅲ. Picture
