Product Details:
|
| Raw Workpiece Material: | CK45 | Sealing: | Japan NOK |
|---|---|---|---|
| Machining Speed: | 150 Rpm/min | Straightness Of The Whole Length: | 0.15mm |
| Centrifugal Pump: | Southern Pump | Processing Allowance: | 7.5mm Every Side |
| Guide Rail Design: | Ultra Wide | The Estimated Time For Processing A Workpiece: | 15 Minutes |
| Highlight: | Ra 0.04 Skiving Roller Burnishing Machine,Spindle Motor Skiving Roller Burnishing Machine |
||
Skiving Roller Burnishing Machine with SIEMENS Spindle Motor
1. Mechanical Drive Mode:
1) Boring bar spindle feed, driven by AC servo motor through ball screw (9 KW)
2) The feed of the pressure tailstock is driven by a servo motor and a trapezoidal screw, with a movement of 2500mm. When cutting workpieces, the locking method between the sliding table and the guide rail is hydraulic control.
3) The boring bar support seat and the boring bar spindle are linked together.
4) When there is an abnormality, the operation stop function should be set with an indicator light.
5) Three-stage warning light (red, yellow, green).
Ⅱ. Parameters
| SRB Model |
SRBF2000/100NC-1W |
|
Machining Time/ Tube |
15 minutes |
| Surface Roughness After Machining |
Ra 0.04 |
| Requirements of the surface of the inner hole after machining |
Have no defects such as burrs, flipping, ripples and so on |

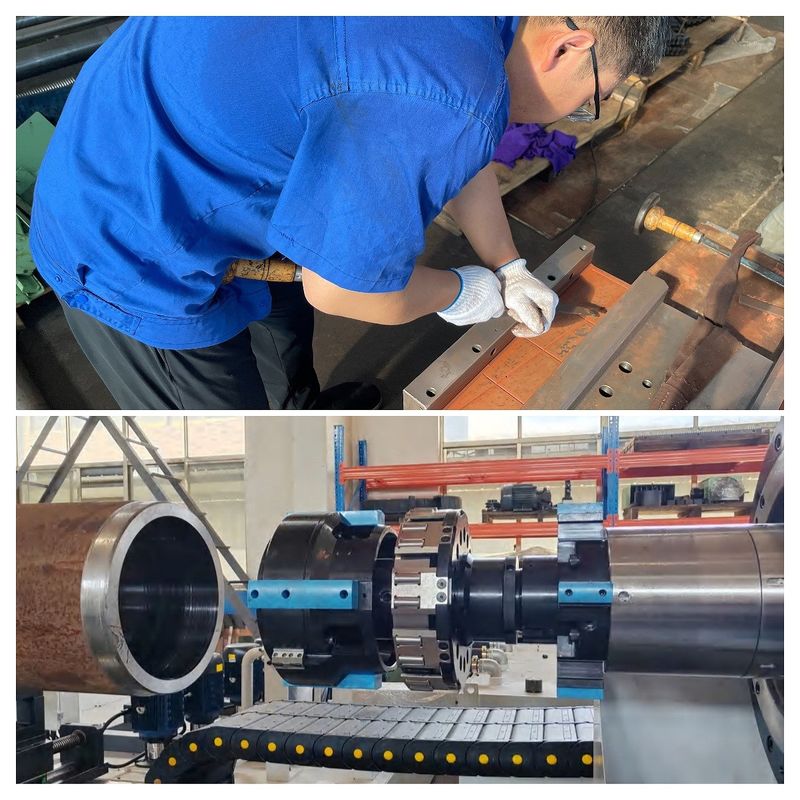

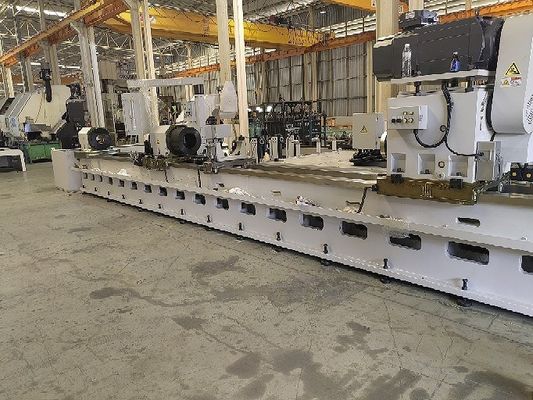

Ⅲ. Picture
